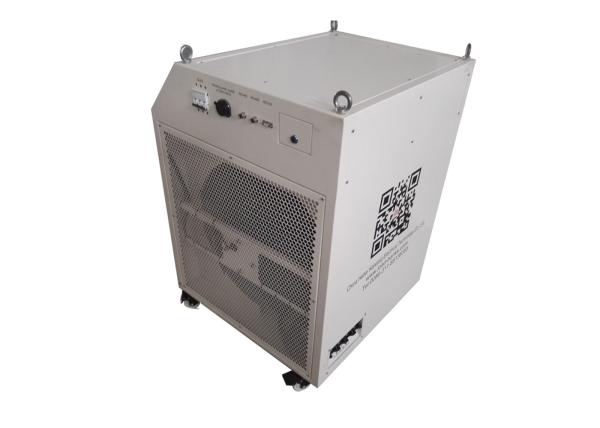

High Accuracy 100kw Generator Resistive Load Tester 3 Phase 50Hz Frequency
High Accuracy 100kw Generator Resistive Load Tester 3 Phase 50Hz Frequency
Specifications
Brand Name :
KAIXIANG
Model Number :
100KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
400VAC/50Hz, 3 phase 4 wir
Rated Load Power :
Resistive load: 100kW
Rated Voltage :
400 VAC
Installed Capacity :
Resistive load: 100kW
Load Tolerance(overall) :
±3%
Control Power :
220VAC/50Hz,single phase
Description

2019 New High Accuracy Top Quality 100kw Generator Resistive Load Tester​

Product Description

1.Supply most robust, high-capacity designs

2.intelligent operator controls,safety indication layouts, adjustable load step resolution, and lightweight designs

3.solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems


Technical Parameters

Rating Voltage/Frequency 400VAC/50Hz, 3 phase 4 wire,
Rated Load Power Resistive load: 100kW
Installed Capacity Resistive load: 100kW
Load Step 1,2,2,5,10,10,20,50kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 220VAC/50Hz, single phase
Wire Connection

Load power supply input——terminal block
Control power supply input——three pin socket
Insulation F
Duty Cycle Continuous
Casing Dimensions and Cooling about 860*570*710mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
Weight About 120kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

1.Stable Running: with the latest generation control module as the core, a sharp rise in system response speed and anti-interference performance, avoid function failure in complex electrical environment, and ensure system running stably and reliably.
2.New Load Bank Technology: using the international advanced AC load bank technology, overcome the old water bank defects, such as bear bumpy, unable to use when go to sea, realize Mooring Trial and Sea Trail, and simulate the real working condition of generator running.

Application


The system is a self-developed device used for electricity load testing by Kaixiang Technology. It perfectly combines the dry type load module and measurement and control module, precisely test output power and load performance of kinds of generator set, UPS etc.

High Accuracy 100kw Generator Resistive Load Tester 3 Phase 50Hz Frequency
