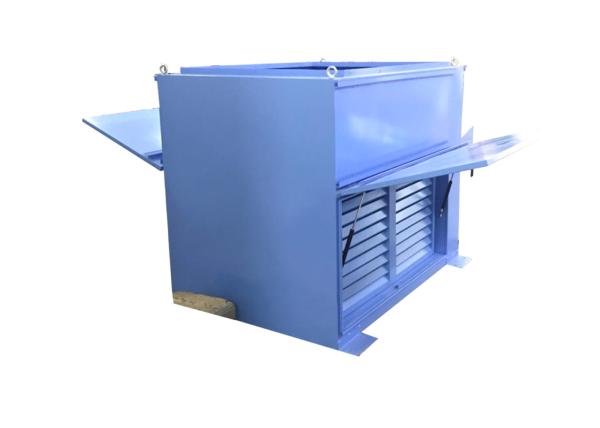

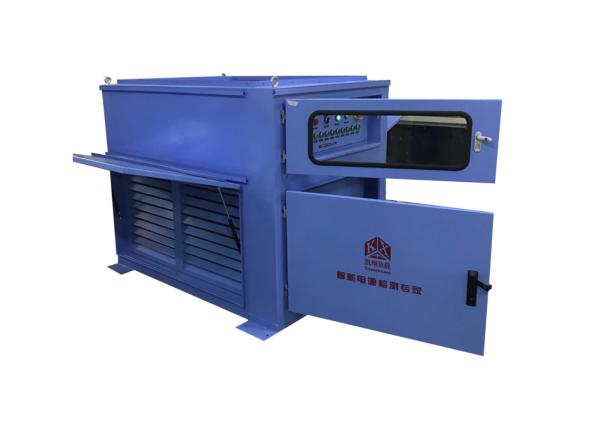

Professional Design And Produce AC Dummy Load Bank 400v 200kw Genset Test
Professional Design And Produce AC Dummy Load Bank 400v 200kw Genset Test
Professional Design And Produce AC Dummy Load Bank 400v 200kw Genset Test
Professional Design And Produce AC Dummy Load Bank 400v 200kw Genset Test
Specifications
Brand Name :
KAIXIANG
Model Number :
200KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
380VAC/50Hz, 3 phase 4 wire
Rated Load Power :
Resistive load: 200kW
Rated Voltage :
380 VAC
Installed Capacity :
Resistive load:200kW
Load Tolerance(overall) :
±3%
Control Power :
400VAC/50Hz, 3 phase 4 wire
Description

Professional Design And Produce 400v 200kw Genset Test Dummy Load Bank

Product Description

The system can accurately test the output power and load capacity of various generator sets.The system consists of two parts of measurement and loading, including AC load bank, data acquisition system, automatic load and drop control system, cooling device, auxiliary control,PC software,and so on.The user can freely select local control or software control to operate the load bank.

Technical Parameters

Rating Voltage/Frequency380VAC/50Hz, 3 phase 4 wire
Rated Load PowerResistive load: 200kW
Installed CapacityResistive load: 200kW
Load Step1,2,2,5,10,10,20,50,100kW, min step load: 1kW
PF(Power Factor)1
Load Tolerance (each step)±5%
Load Tolerance(overall)±3%
Display Precision0.5 class
Control Power400VAC/50Hz, 3 phase 4 wire, 230V 1-phase
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Connector-bar

InsulationF
Duty CycleContinuous
Casing Dimensions and Coolingabout 700*500*300mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
WeightAbout 300kgs/set
TransportationHoisting, there are lifting lug in top of casing
Casing ColorGrey(RAL7035)
Ambient Temperature-10℃～+50℃
Relative Humidity≤95%
Altitude≤1500 meter
Atmospheric Pressure86～106kPa
ContactorSchneider
FuseDELIXI
MCUINFINEON
Data processing softwareKaixiang(self-developed)
Alloy ResistanceKaixiang(self-developed)


Product Advantage

1. Super Power Load: high load power density, large capacity of single set, parallel running to finish super power testing, and realize tens of megawatts of power loading.
2. Accurate Data: with high precision data collection module and measuring meter, related equipment has passed the certification by CMA (China Metrology Accreditation) qualification testing institution, and ensure the reliability of data.

Application

1.Manufacturers of standby power generators commonly use load banks to test and tune newly assembled units
2.generator has been set up in a test cell within the factory, a test engineer uses the load bank to apply a discrete, selectable electrical load to the generator and measure the response stability and endurance.
3.During this process, the test engineer calibrates and adjusts the generator performance to ensure it meets the intended product specifications and tolerances.
