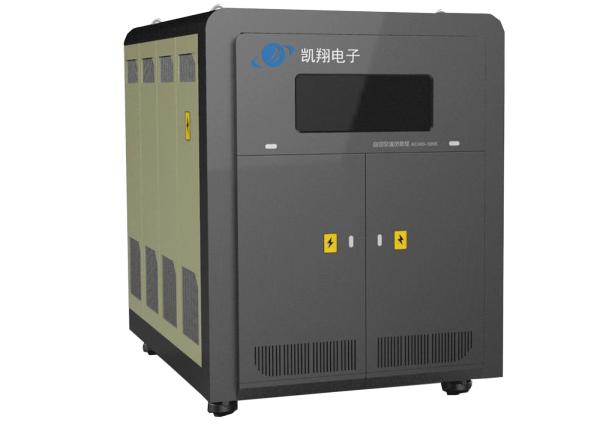

AC 400V - 500 KW Dummy Load Bank Safety Monitor For Electricity Load Testing
AC 400V - 500 KW Dummy Load Bank Safety Monitor For Electricity Load Testing
AC 400V - 500 KW Dummy Load Bank Safety Monitor For Electricity Load Testing
AC 400V - 500 KW Dummy Load Bank Safety Monitor For Electricity Load Testing
Specifications
Brand Name :
Kaixiang
Model Number :
AC400V-500kW
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
60 Sets / Month
Delivery Time :
Within 40 days
Packaging Details :
Packaged in wooden cases
Model :
AC400V-500kW
Rated power :
500kW
Voltage :
AC400V
PF(Power Factor) :
1
Colour :
Grey or black
Ambient Temperature :
-10℃～+50℃
Description

AC400V-500kW Dummy Load Bank With Frequency 50HZ And Best Sales

Introduction

AC400V-500kW Dummy Load Bank is a self-developed device used for electricity load testing by Kaixiang Technology. It perfectly combines the dry type load module and measurement and control module, precisely test output power and load performance of kinds of generator set, and realize setting, fluctuation, instant load, instant unload, record wave analysis, and harmonic wave analysis, so to finish all the static parameters and dynamic parameters testing.

while generating charts, graphs and test reports, from full manual operation. Provides a scientific means of detection equipment for the power generators.

Application

AC400V-500kW Dummy Load Bank can be used in a wide variety of applications , such as

To reduce wet stacking problems , Factory testing of turbines ,Factory testing of engine generator sets,Periodic excercising of

stand-by engine generator sets, Ups system testing,Battery system testing , Load optimization in prime power applications .

Technical specification

AC400-500kW Dummy Load Bank
Rating Voltage/Frequency

400VAC 3 phase 4 wire, wire voltage: 400V, phase voltage: 230V

/50Hz
Rated Load Power Resistive load:500kW
Installed Capacity Resistive load: 500kW
Load Step 1kW,2kW,2kW,5kW,10kW,10kW,20kW,50kW,100kW,100kW,200kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power External 380VAC/50Hz, 3 phase 4 wire, 220V 1-phase
Wire Connection

Load power supply input——Copper bar (star coupling)

Control power supply input——Connector-bar
Insulation F
Duty Cycle Continuous
Cooling Type Force air cooling, horizontal air inlet and vertical air outlet
Transportation Hoisting, there are lifting lug on top and castors at the bottom of casing
Dimension About 1550mm*1250mm*1680mm(L×W×H)
Weight About 750kgs
Casing Color Orange(RAL2008)or as required
Operating Environment Parameter
Workplace Indoor
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Brands of Main Components
Contactor Schneider

Main features

Smoke Fog Protection: If there is smoke fog in the container, system cut off load automatically and give an alarm.

Fan Delivery Protection: insufficient air volume with any fan 2450m³/h, system unload automatically and give an alarm.

Fan Delivery Protection: insufficient air volume with any fan 2450m³/h, system unload automatically and give an alarm.
Emergency Stop: manually press the Emergency Stop switch on the panel, then load bank is in locked state, and cannot do any operation.
Protection Switch: some protection with switch, when misinformation or in special need, user can close the corresponding protection function temporarily.
Safety Monitor: through indicator lights on main interface, user can monitor system state. When system abnormally stop and protect, software interface prompt the cause immediately.
Overvoltage Protection: the input load voltage is over the safe threshold value, system unload automatically and give an alarm.

Short Circuit Protection and Over Current Protection: when short circuit, fuses in the load bank can insure to unload automatically.

Overheating Protection: temperature is over the safe threshold value, system unload automatically and give an alarm.

AC 400V - 500 KW Dummy Load Bank Safety Monitor For Electricity Load Testing
