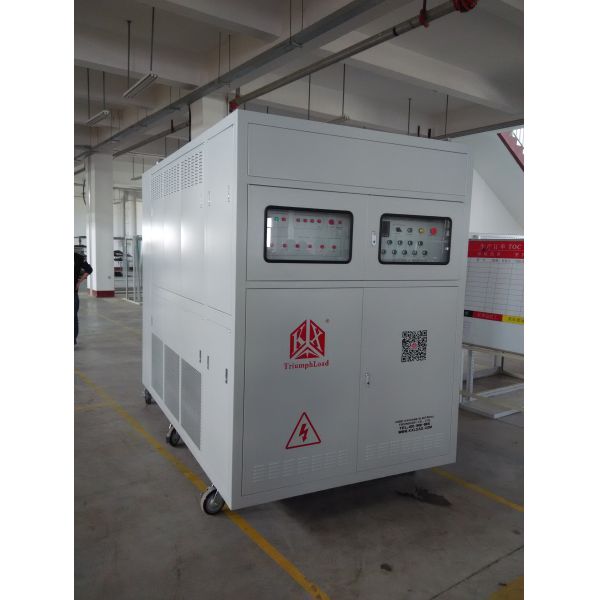

1200 KW Resistive Load Bank Calculation Continuous Working For Generator
1200 KW Resistive Load Bank Calculation Continuous Working For Generator
1200 KW Resistive Load Bank Calculation Continuous Working For Generator
1200 KW Resistive Load Bank Calculation Continuous Working For Generator
Specifications
Brand Name :
KAIXIANG
Model Number :
1200KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
440VAC/50Hz, 3 phase 4 wire, line voltage 440V, phase voltage 254V
Rated Voltage :
440 VAC
Installed Capacity :
Resistive load: 1200 kW
Control Power :
690 VAC / 50 Hz
size :
1600*2600*2000mm
weight :
1700kg
Description

For Diesel Generator Automatic Remote Control 440V 1200K Watt AC Load Bank

Product Description

AC440-1200kW Automatic Load Bank is mainly used to test the performance of generator. It can provide scientific monitor measure for generating set equipment.

Technical Parameters

Rating Voltage/Frequency 440VAC/50Hz, 3 phase 4 wire, line voltage 440V, phase voltage 254V
Rated Load Power Resistive load: 1200kW
Installed Capacity Resistive load: 1200kW
Load Step 1,2,2,5,10,10,20,50,100,200,200,200,200, 200kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 380VAC/50Hz 3 phase 4 wire (line voltage 380V, phase voltage 220V )
Wire Connection

Load power supply input——Copper bar (star coupling)

Control power supply input——Connector-bar
Insulation F
Protection Grade IP21
Way of Working Continuous Working
Casing Dimensions and Cooling about 1600*2600*2000mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling
Weight About 1700kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

1. Real-time Monitor: through software display main parameter value, such as voltage, current, power, power factor, frequency and time.

2. Security monitoring and control: monitor working state of the load bank by watching software light, when abnormally stop and protect, it can show the reason.

3. Data Collection Interval: the minimum data resolving time is 2s.

4.Data save and query: all the test data is saved in the software, easy to query in the history testing data.

Application

1. for generator power ,the frequency,the voltage,the current,power factor and other generator parameters

2. Because Most of the generator use the diesel oil,which can cause the fuel oil unfilled,carbon deposition ,complete machine efficiency reduced when the diesel oil load is lower than 50% or in idling situation for a long time and even cause starting difficulty ,power insuffciency,oil consumption increased,finally,opening the cylinder for maintenance too early and the abandonment ,so the load bank will be generator's ideal false load.
