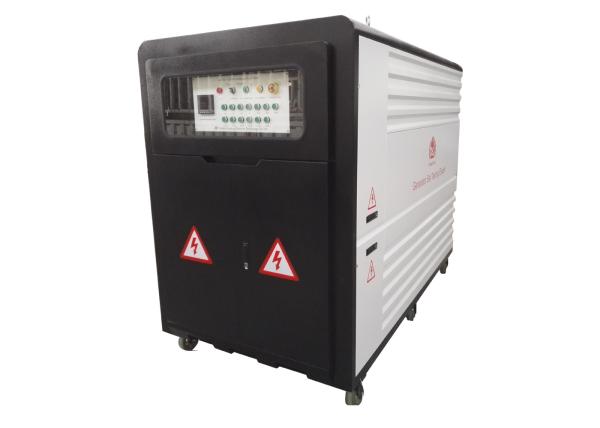

Professional Design AC Load Bank Forced Air Cooling For Drilling Facilities
Professional Design AC Load Bank Forced Air Cooling For Drilling Facilities
Professional Design AC Load Bank Forced Air Cooling For Drilling Facilities
Professional Design AC Load Bank Forced Air Cooling For Drilling Facilities
Specifications
Brand Name :
KAIXIANG
Model Number :
1000 KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
380VAC/50Hz, 3 phase 4 wire, line voltage 380V, phase voltage 220V
Rated Voltage :
380 VAC
Installed Capacity :
Resistive load: 1010kW
Control Power :
400VAC/50Hz, 3 phase 4 wire, 230V 1-phase
size :
1600*2400*2100mm
Weight :
1500 kg
Description

Professional Design And Produce 380V 1000KW AC Load Bank For Sale

Product Description

1. It can ensure the reliability of constant power charge that adopts uniformly stepped power input, energy consumption work model and forced air-cooling model.

2. It is of high power density, no red hot phenomenon and automatic protection function overheated.

3. It can’t be overheated and broken when the fans stop working

4.The complete machine can be operated simply and maintain convenient that adopts module design. It can test voltage and current according to client’s request, and provide scientific test measures for high-power AC equipment.

Technical Parameters

Rating Voltage/Frequency 380VAC/50Hz, 3 phase 4 wire, line voltage 380V, phase voltage 220V
Rated Load Power Resistive load: 1000kW
Installed Capacity Resistive load: 1010kW
Load Step 1,2,2,5,10,20,20,50,100,200,200,200,200kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 400VAC/50Hz, 3 phase 4 wire, 230V 1-phase
Wire Connection

Load power supply input——Copper bar (star coupling)

Control power supply input——Connector-bar
Insulation F
Duty Cycle Continuous
Casing Dimensions and Cooling about 1600*2400*2100mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
Weight About 1500kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

1. Flexible Control Mode: based on different using habit, several control mode as following can be choosed, local panel operation, remote box controlling, and intelligent software.

2. Intelligent Load: after setting generator rated power in software, system realize rapid loading through preset proportion, automatically and continuously load multiple power value and common tests, like stepping, full load, and over load, so that improve working efficiency.

3. High Efficiency Data Management: display real-time testing data, generate form, curve graph or report automatically, also can put data into storage. According to generator set No. set up testing file, support to query at any time, and improve data management efficiency.

4. Comprehensive Protection Function: multiple protection, like over temperature, smoke. When in danger, automatically terminate the test and give alarm to protect safety of personnel and equipment.

Application

Large generator system testing in ocean engineering, drilling facilities,ship construction etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
