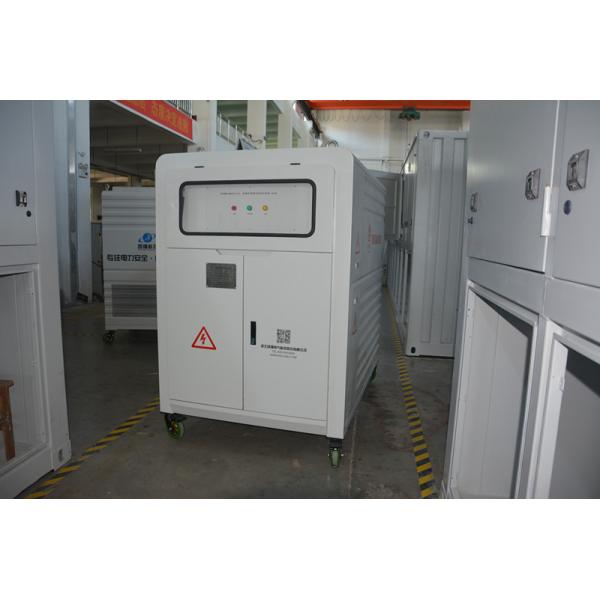

0.5 Class Display Precision Inductive Load Bank , Diesel Load Bank Cabinet
0.5 Class Display Precision Inductive Load Bank , Diesel Load Bank Cabinet
0.5 Class Display Precision Inductive Load Bank , Diesel Load Bank Cabinet
0.5 Class Display Precision Inductive Load Bank , Diesel Load Bank Cabinet
Specifications
Brand Name :
KAIXIANG
Model Number :
AC400-625KVA
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 Sets per Month
Delivery Time :
Within 30 working days
Packaging Details :
Wooden Case for Load bank
Max Rated power :
Apparent Power: 19700kVA Resistive Power: 500kW Reactive Power: 375kvar
rated power facor :
0.8
Casing Dimensions and Cooling :
about 1540*1250*1680mm (length*width*height) Forced air cooling，Horizontal inlet air，Vertical cooling
Transportation :
Hoisting, there are lifting lug in top of casing
Casing Color :
Grey（RAL7035）
Ambient Temperature :
-10℃～+50℃
Description

High Quality Good Price 400V 625KVA Inductive Load Bank For Middle East

Product description

The system consists of 1 sets of AC400-625kVA-RL load bank. The system is made up of two parts of measurement and control and load, mainly including the tank dry type ac load, automatic data acquisition system, automatically loading and unloading control system, the cooling device, auxiliary control, remote control box and PC software and so on.

Technical Parameter

Rating Voltage/Frequency 400VAC/50Hz, 3 phase 4 wire,
Max Rated power

Apparent Power: 19700kVA
Resistive Power: 500kW
Reactive Power: 375kvar
Load Resolution

Resistive Load: 1.2.2.5.10.10.20.50.100.100.200kw
Reactive load: 1.2.2.5.5.10.10.20.20.50.50.100.100kvar
PF(Power Factor) 0.8
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 380VAC/50Hz,

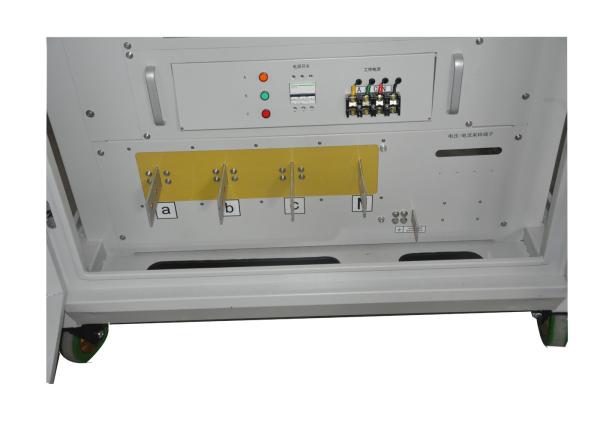

Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Connector-bar
Communication Interface RS485,
Casing Dimensions and Cooling about 1540*1250*1680mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling
Weight About 2500kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

Kaixiang company is in leading position in generator set testing and maintenance industry, besides general functions, its load bank has following unique advantages:
1. Intelligent Load: after setting generator rated power in software, system realize rapid loading through preset proportion, automatically and continuously load multiple power value and common tests, like stepping, full load, and over load, so that improve working efficiency.
2. High Efficiency Data Management: display real-time testing data, generate form, curve graph or report automatically, also can put data into storage. According to generator set No. set up testing file, support to query at any time, and improve data management efficiency.

Application

Most of the generator use the diesel oil,which can cause the fuel oil unfilled,carbon deposition ,complete machine efficiency reduced when the diesel oil load is lower than 50% or in idling situation for a long time and even cause starting difficulty ,power insuffciency,oil consumption increased,finally,opening the cylinder for maintenance too early and the abandonment ,so the load bank will be generator's ideal false load
