Phase Voltage 220V Resistive Load Bank 86～106 KPa Atmospheric Pressure
Phase Voltage 220V Resistive Load Bank 86～106 KPa Atmospheric Pressure
Phase Voltage 220V Resistive Load Bank 86～106 KPa Atmospheric Pressure
Phase Voltage 220V Resistive Load Bank 86～106 KPa Atmospheric Pressure
Specifications
Brand Name :
KAIXIANG
Model Number :
400KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
1 SET
Price :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
100 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating voltage/frequency :
380VAC/50Hz, 3 phase 4 wire, line voltage 400V, phase voltage 220V
Max Load Power :
410KW
Control source :
380VAC 50Hz
Wire Connection :
Control power input——busbar
Dimensions :
About 1255mm×1530mm×1700mm L×W×H
Weight :
About 600kgs
Description

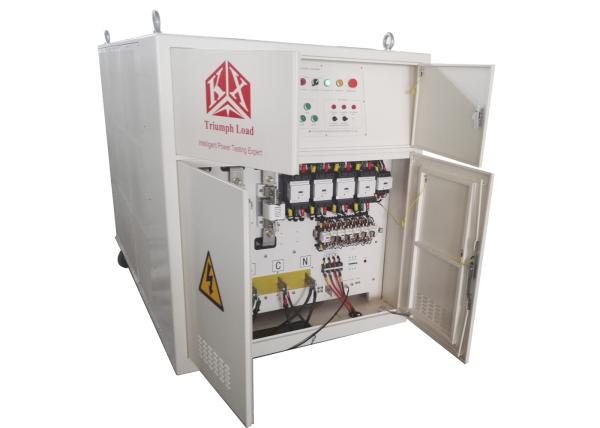

400Kw Resistive Load Bank color Choose For Generator Testing

Product Description

AC400-400kW Intelligent Load Bank is mainly used to test the performance of generator. It can provide scientific monitor measure for generating set equipment.

Technical Parameter

Rating Voltage/Frequency 380VAC/50Hz, 3 phase 4 wire, line voltage 400V, phase voltage 220V
Rated Power Resistive load: 410kW
Installed Capacity Resistive load: 410kW
Load Step 1,2,2,5,10,20,20,50,100,200kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance(each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 380VAC 50Hz
Wire Connection

Load power supply input——Copper bar (star coupling “Y”)

Control power supply input——Connector-bar
Insulation F
Way of Working Continuous Working
Casing Dimensions and Cooling about 1255mm×1530mm×1700mm
(length*width*height) Forced air cooling,Horizontal inlet air and vertical cooling
Weight About 600kgs/set
Transportation Hoisting, there are lifting lug in top of casing, also the wheel casters can be provided
Casing Color Grey(RAL7035)or as you required
Workplace Outdoor
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advangent

(1) Communication Mode:RS485/ USB or RS232 interface for communication.

(2) Load Mode: manual load or automatic load

(3) Manual Load: input power and power factor, and load according to the preset value.

(4) Automatic Load: set several load stages and duration, then complete the process according this stages automatically. 0%- 25%,- 50%,- 75%, -100%

Application:

It is used with Engine Generators, Battery Systems, UPS Systems, Inverters, Ground Power Units, Auxiliary Power Units, Aircraft Power Generators, Wind Generators, and Hydro Generators
