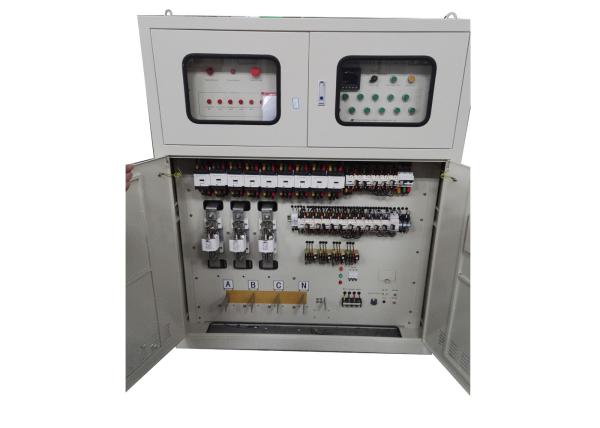

440 KW Intelligent Resistive Load Bank Color Choose For Generator Testing
440 KW Intelligent Resistive Load Bank Color Choose For Generator Testing
440 KW Intelligent Resistive Load Bank Color Choose For Generator Testing
440 KW Intelligent Resistive Load Bank Color Choose For Generator Testing
Specifications
Brand Name :
KAIXIANG
Model Number :
440 KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
1 SET
Price :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
100 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating voltage/frequency :
3 phase 4 wire, line voltage 400V,
Max Load Power :
440 KW
Control source :
400VAC 50Hz
Wire Connection :
Control power input——busbar
Dimensions :
About 1500mm×1530mm×1700mm L×W×H
Weight :
About 750kgs
PF(Power Factor) :
1
Insulation :
F
Description

400Kw Resistive Load Bank color Choose For Generator Testing

Product Description

AC400-400kW Intelligent Load Bank is mainly used to test the performance of generator. It can provide scientific monitor measure for generating set equipment.

Technical Parameter

Rating Voltage/Frequency 3 phase 4 wire, line voltage 400V,
Rated Power Resistive load: 440kW
Installed Capacity Resistive load: 440kW
Load Step 1,2,2,5,10,10,10,20,20,20,50,100,200kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance(each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 380VAC 50Hz
Wire Connection

Load power supply input——Copper bar (star coupling “Y”)

Control power supply input——Connector-bar
Insulation F
Way of Working Continuous Working
Casing Dimensions and Cooling about 1500mm×1530mm×1700mm
(length*width*height) Forced air cooling,Horizontal inlet air and vertical cooling
Weight About 750kgs/set
Transportation Hoisting, there are lifting lug in top of casing, also the wheel casters can be provided
Casing Color Grey(RAL7035)or as you required
Workplace Outdoor
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advangent

Our load bank of Communication Mode:RS485/ USB or RS232 interface for communication.

this load Mode has manual load or automatic load two ways for choose .

Manual Load: input power and power factor, and load according to the preset value.

Automatic Load: set several load stages and duration, then complete the process according this stages automatically. 0%- 25%,- 50%,- 75%, -100%

Application:

Manufacturers of standby power generators commonly use load banks to test and tune newly assembled units. When the generator has been set up in a test cell within the factory, a test engineer uses the load bank to apply a discrete, selectable electrical load to the generator and measure the response stability and endurance. During this process, the test engineer calibrates and adjusts the generator performance to ensure it meets the intended product specifications and tolerances.
