Remote Control Dummy Load bank For Generator Waterproof Within Rated Power
Remote Control Dummy Load bank For Generator Waterproof Within Rated Power
Remote Control Dummy Load bank For Generator Waterproof Within Rated Power
Remote Control Dummy Load bank For Generator Waterproof Within Rated Power
Specifications
Brand Name :
KAIXIANG
Model Number :
3000 KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Resistive load :
3000 KW
Display Precision :
0.5 class
Load Step :
10、20、20、50、100、200kW*14, total 19 steps, min step load: 10kW.
Rating Voltage/Frequency :
400VAC 50/60Hz, 3 phase 4 wire, line voltage 400V, phase voltage 230V
Insulation :
F
weight :
7000 kg
Description

Testing on Generator Sets 400V 3000kw Dummy Generator Load Bank

Product Description

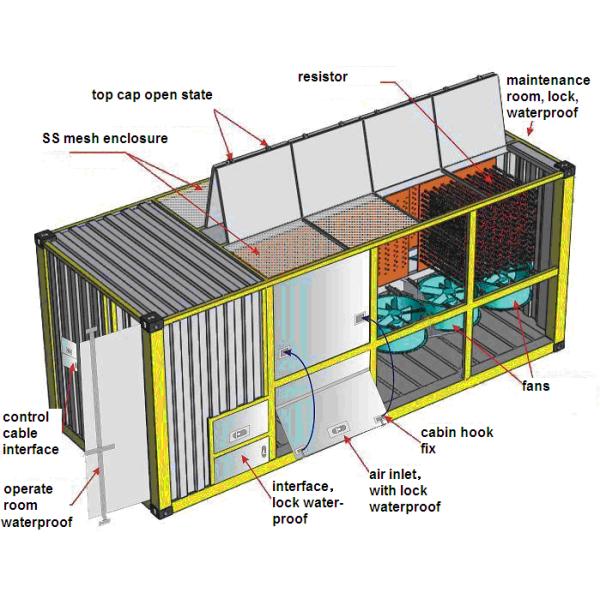

The system is made up of two parts of measurement and control and load, mainly including the tank dry type ac load, automatic data acquisition system, automatically loading and unloading control system, the cooling device, auxiliary control, box and PC software and so on.


Technical Parameter

Rating Voltage/Frequency 400VAC 50/60Hz, 3 phase 4 wire, line voltage 400V, phase voltage 230V
Rated Load Power Resistive load: 3000kW
Installed Capacity Resistive load: 3000kW
Load Step 10,20,20,50,100,200kW*14, total 19 steps, min step load: 10kW.
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 380VAC 50Hz 3 phase 4 wire (Line voltage 380V, phase voltage 220VAC)
Wire Connection

Load power supply input——Copper bar (star coupling)

Control power supply input——Connector-bar
Insulation F
Way of Working Continuous Working
Casing Dimensions and Cooling

Forced air cooling,Horizontal inlet air,Vertical cooling

6058*2438*2591mm (L*W*H) 20’GP container type.
Weight About 7000kgs
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)


Product Advantages

1. Users can set adjustable load power within rated power.
2. Current, voltage, frequency, power factor, and active power, reactive power, and apparent power can be displayed.

3. With software programmable control, graphs of current, voltage, frequency, power factor, power can be displayed, saved and printed.

Application

1. for generator power ,the frequency,the voltage,the current,power factor and other generator parameters

2. Because Most of the generator use the diesel oil,which can cause the fuel oil unfilled,carbon deposition ,complete machine efficiency reduced when the diesel oil load is lower than 50% or in idling situation for a long time and even cause starting difficulty ,power insuffciency,oil consumption increased,finally,opening the cylinder for maintenance too early and the abandonment ,so the load bank will be generator's ideal false load.
