Multi Voltage Dummy Load Bank Over Current Protection For Testing Numerous Sets
Multi Voltage Dummy Load Bank Over Current Protection For Testing Numerous Sets
Multi Voltage Dummy Load Bank Over Current Protection For Testing Numerous Sets
Multi Voltage Dummy Load Bank Over Current Protection For Testing Numerous Sets
Specifications
Brand Name :
Kaixiang
Model Number :
AC400V-2000KVA
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50Sets/Month
Delivery Time :
Within 30 days
Packaging Details :
Packaged in container
Model :
AC400V-2000KVA
Rated power :
2000KVA
Voltage :
AC400V
PF(Power Factor) :
0.8
Display Precision :
0.5 class
Dimension :
About 4058mm×2350mm×2591mm（L×W×H）
Description

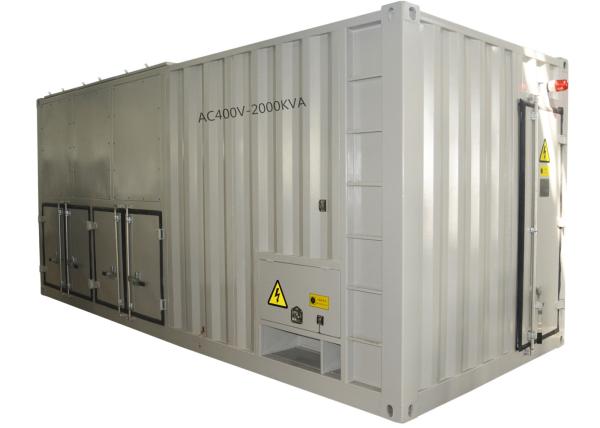

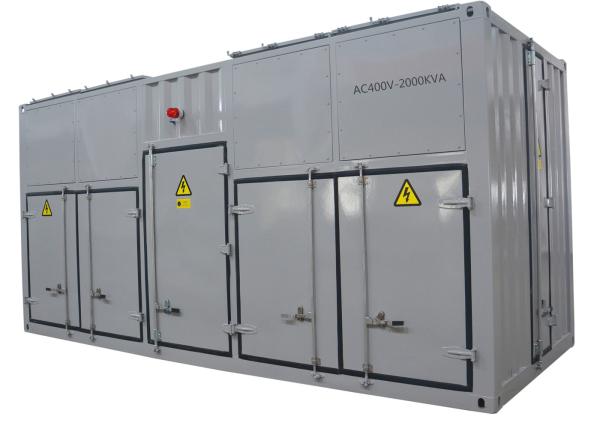

AC400V-2000KVA Dummy Load Bank In High Performance And Resistive Inductive

Introduction

Triumph load can simulate the real working conditions and provides a rigorous test regime for power supplies from 1kW to 60MW. Resistive, inductive(reactive),capacitive or combined load banks can be customised for any application. They can be used for testing numerous sets in a workshop environment, or used for on-site commissioning, witness tests and proof trials.Tailor-made load banks can be supplied for most powers, voltages, frequencies and sizes. Multi-voltage load banks are also available for operation over a large voltage range. At the same time, It can operate in parallel with more than two units.

Application

AC400V-2000KVA Dummy Load Bank can be used in a wide variety of applications , such as

To reduce wet stacking problems , Periodic excercising of stand-by engine generator sets

Ups system testing,Battery system testing , Load optimization in prime power applications

Factory testing of turbines , Factory testing of engine generator sets,

Technical specification

System Parameter
Rating voltage/frequency 400V, 3 phase 4 wire 50Hz
Max Load Power

Apparent Power: 2000KVA

Resistive Load: 1600kW

Inductive Load: 1200KVAR
Load Resolution

Resistive Load: 16 steps 1kW,2kW,2kW,5kW,10kW,10kW,20kW,50kW,100kW,200kW,200kW,200kW, 200kW,200kW,200kW,200kW

Inductive Load: 14 steps

1KVAR,2 KVAR, 2KVAR, 5KVAR, 10KVAR, 10KVAR, 20KVAR, 50KVAR, 100KVAR, 200KVAR, 200KVAR, 200KVAR, 200KVAR, 200KVAR
Power Factor 0.8
Load Tolerance (each step) ±5%
Load Tolerance (overall) ±3%
Fan &Control Voltage External 400V 3 phase 4 wire, 50Hz
Wire Connection

Load bank input——Copper bar (star coupling ”Y”)

Control power input——Connector-bar
Communication Interface RS485,RS232
Insulation F
Max Protection Grade IP54
Duty Cycle Continuous
Cooling Forced air cooling, by Axial Fan; horizontal inlet air, vertical exhaust cooling
Enclosure Container type,with a ladder, air inlet and outlet with mesh enclosure and protection door
Internal Lighting Adequate internal lighting will be provided
Transportation Hoisting, there are lifting lug in top of casing
Color Grey RAL7035 or as required
Dimensions About 6058mm×2350mm×2591mm(L×W×H)
Main features
Emergency Stop: manually press the Emergency Stop switch on the panel, then load bank is in locked state, and cannot do any operation.
Protection Switch: some protection with switch, when misinformation or in special need, user can close the corresponding protection function temporarily.
Safety Monitor: through indicator lights on main interface, user can monitor system state. When system abnormally stop and protect, software interface prompt the cause immediately.

Overvoltage Protection: the input load voltage is over the safe threshold value, system unload automatically and give an alarm.

Short Circuit Protection and Over Current Protection: when short circuit, fuses in the load bank can insure to unload automatically.

Overheating Protection: temperature is over the safe threshold value, system unload automatically and give an alarm.

Smoke Fog Protection: If there is smoke fog in the container, system cut off load automatically and give an alarm.

Fan Delivery Protection: insufficient air volume with any fan 2450m³/h, system unload automatically and give an alarm.

Overload protection with fan: when any fan cannot normally work, the load bank can unload automatically and give an alarm.
