Black / Grey Variable Resistive Load Bank To Reduce Wet Stacking Problems
Black / Grey Variable Resistive Load Bank To Reduce Wet Stacking Problems
Black / Grey Variable Resistive Load Bank To Reduce Wet Stacking Problems
Black / Grey Variable Resistive Load Bank To Reduce Wet Stacking Problems
Specifications
Brand Name :
Kaixiang
Model Number :
AC400V-600KW
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets / Month
Delivery Time :
Within 30 days
Packaging Details :
Packaged in wooden cases
Model :
AC400V-600KW
Rated power :
600KW
Voltage :
AC400V
PF(Power Factor) :
0.8
Display Precision :
0.5 class
Colour :
Grey or black
Description

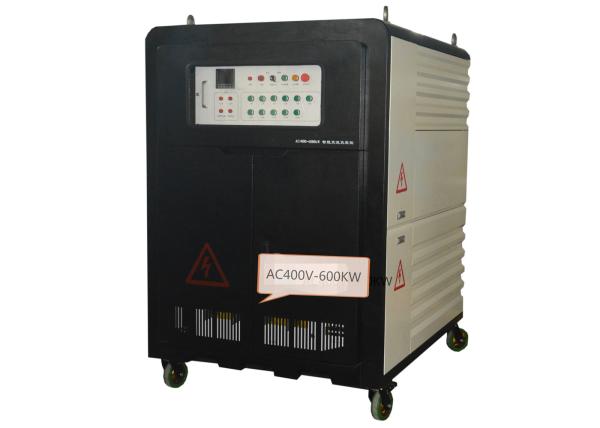

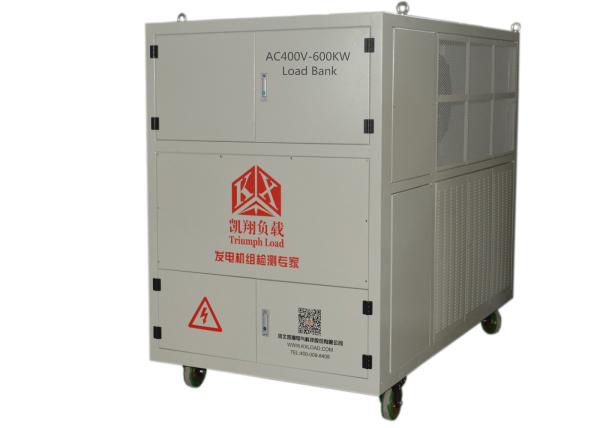

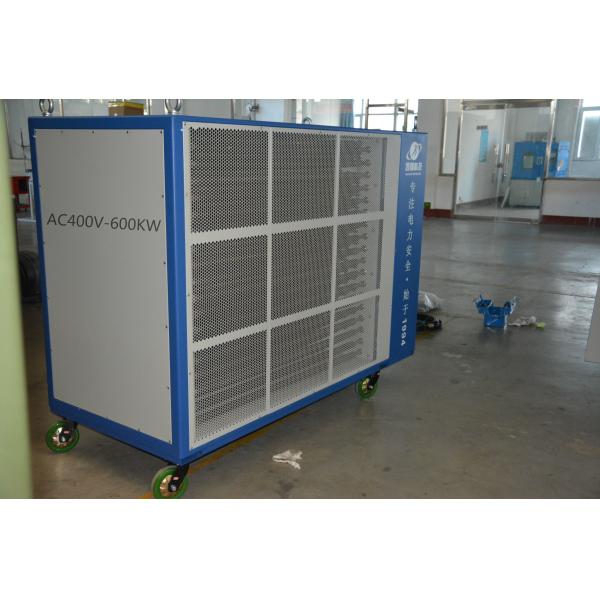

AC400V-600KW Dummy Load Bank In Good Performance And Resistive Inductive

Introduction

AC400V-600KW Dummy Load Bank is designed for AC power maintenance,could be used widely in communication base,power supply,power station etc.This machine is small , light weight digital table display , easy operation , high intelligence, set the parameters of constant current discharge process can be done automatically

Application

AC400V-600KW Dummy Load Bank can be used in a wide variety of applications , such as

Factory testing of engine generator sets,Periodic excercising of stand-by engine generator sets

Ups system testing,Battery system testing , Load optimization in prime power applications

Factory testing of turbines , To reduce wet stacking problems .

Technical specification

Voltage

AC400V(3 phase 4 wire)

Line voltage 400V,Phase voltage 230V
Power 0-610KW
Step 1KW,2KW,2KW,5KW, 10KW,20KW,20KW,50KW,100kW, 100kW,100kW,200kW
Environment temperature -10℃ - 50℃
Cooling Air cooling
Working power supply AC380V, 50Hz
Main features

Smoke Fog Protection: If there is smoke fog in the container, system cut off load automatically and give an alarm.

Fan Delivery Protection: insufficient air volume with any fan 2450m³/h, system unload automatically and give an alarm.

Fan Delivery Protection: insufficient air volume with any fan 2450m³/h, system unload automatically and give an alarm.
Overload protection with fan: when any fan cannot normally work, the load bank can unload automatically and give an alarm.
Emergency Stop: manually press the Emergency Stop switch on the panel, then load bank is in locked state, and cannot do any operation.
Protection Switch: some protection with switch, when misinformation or in special need, user can close the corresponding protection function temporarily.
Safety Monitor: through indicator lights on main interface, user can monitor system state. When system abnormally stop and protect, software interface prompt the cause immediately.

Overvoltage Protection: the input load voltage is over the safe threshold value, system unload automatically and give an alarm.

Short Circuit Protection and Over Current Protection: when short circuit, fuses in the load bank can insure to unload automatically.

Overheating Protection: temperature is over the safe threshold value, system unload automatically and give an alarm.
