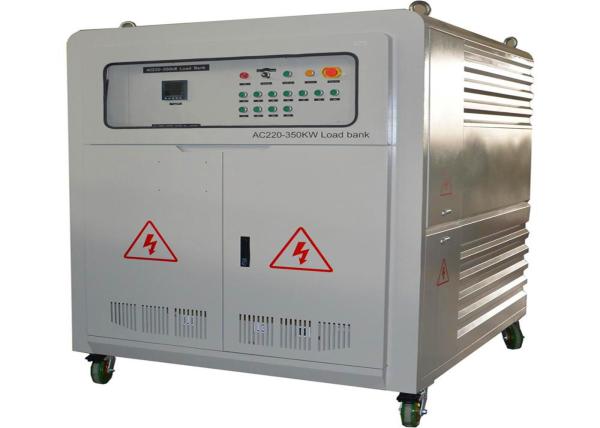

Three Phase Resistive AC Load Bank Eliminate Carbon Deposition Of Generator
Three Phase Resistive AC Load Bank Eliminate Carbon Deposition Of Generator
Three Phase Resistive AC Load Bank Eliminate Carbon Deposition Of Generator
Three Phase Resistive AC Load Bank Eliminate Carbon Deposition Of Generator
Specifications
Brand Name :
KAIXIANG
Model Number :
500KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rated Power :
500 KW
Installed Capacity :
Resistive load: 500kW
Frequency :
50 / 60HZ
Rated Voltage :
220 VAC
Load Tolerance (each step) :
±5%
Load Tolerance(overall) :
±3%
Control Power :
380VAC, 3 phase 4 wire, 50 Hz, phase voltage220V (with a small transformer: change 277V to 220VAC Single phase
name :
portable load banks for generators
Description

High Load Power Density AC Load Bank Eliminate The Carbon Deposition Of Generator

Product Description

1. AC Load Bank offers the most robust, high-capacity designs in the industry.
2. It is setting the standard with intelligent operator controls, safety indication layouts, adjustable load step resolution, and lightweight designs.
3. AC Load Bank is the perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems.

Technical Parameters

Rating Voltage/Frequency 500Kw at 220VAC, 3 phase 4 wire, 50 Hz, phase voltage127V.
Max Load Power Resistive load:510kW
Load Steps 11 steps, Resistive load:1kW,2kW,2kW,5kW,10kW,20kW,20kW,50kW, 100kW, 100kW, 200kW min load step: 1 kW
PF(Power Factor) 1
Load Accuracy (each step) ±5%
Load Accuracy (overall) 3%
Display Precision 0.5 grade
Control Power 380VAC, 3 phase 4 wire, 50 Hz, phase voltage220V (with a small transformer: change 277V to 220VAC Single phase
Wire Connection

Load power supply input——star coupling

Control power supply input——terminal block
Insulation F
Way of Working Continuous Work
Cooling Fan forced cooling, horizontal inlet air and vertical outlet cooling
Casing Color Grey(RAL7035)
Dimensions 1460 mm*1980mm*1800mm(length*wide*high)
Weight About 750kgs
Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Contactor Schneider
Fuse DELIXI
Alloy Resistance (self-developed)


Product Advantage

1. User can press the emergency stop button in the panel to unload immediately when the load bank is abnormal while working.

2. Over-load: Automatic load dump and give alarm when voltage is over safety thresholds.

3. Short Circuit Protection: Fuse could avoids damage to equipment when short circuit or current overload.

4. Fan protection: Machine could not do load testing before working power of fan is on.

5. The machine will unload and give alarm when any fan is abnormal or with insufficient air volume, etc.

Application

Generators installed in the field must be periodically tested and exercised to ensure that it will operate as intended when a power outage actually occurs. Service groups use load banks to apply a load that mimics the load of the facility the generator is protecting. Any problems with the generator can then be identified and rectified in a non-critical environment.
