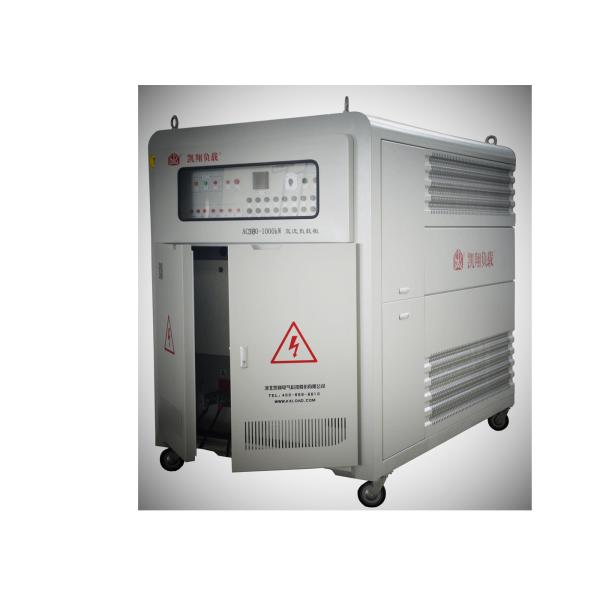

Insulation Protection AC Load Bank Intelligent Control With Wire Voltage 380 V
Insulation Protection AC Load Bank Intelligent Control With Wire Voltage 380 V
Insulation Protection AC Load Bank Intelligent Control With Wire Voltage 380 V
Insulation Protection AC Load Bank Intelligent Control With Wire Voltage 380 V
Specifications
Brand Name :
Kaixiang
Model Number :
AC380V-1000kW
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
55 Sets / Month
Delivery Time :
Within 44 working days
Packaging Details :
Packaged in wooden cases
Model :
AC380V-1000kW
Rated power :
1000 kW
Voltage :
AC380V
Performance :
Continuous working
Max Protection Grade :
IP21
Power Factor :
1
Description

AC380V-1000kW Adjustable Load Bank In Automatic Performance And Best Sales

Introduction

This system, which is of independent research and development of electricity load test equipment by our technology, combining high voltage dry type load module with the automatic measurement and control module, with excellent insulation protection performance, it can directly detect high voltage generator output power and load capacity (no need step down transformer), full load and overload test.

The system consists of 1 sets of 3MW load bank. The system is made up of two parts of measurement & control and load, mainly including the high voltage dry type AC load bank, automatic data acquisition system, automatically loading and unloading control system, the cooling device, auxiliary control, remote control box and PC software and so on.

Application

The system can be used with a computer to realize the intelligent control, automatically completing the special test to all electrical parameters of generating set and generating tables, graphs, and supporting the print, release from the cumbersome manual operation to provide scientific and efficient detection means for the large power high voltage generating sets.

Technical specification

AC380-1000kW Automatic Load Bank
Rating Voltage/Frequency

380VAC, 3 phase 4 wire, wire voltage 380V, phase voltage 220V

50Hz
Rated Load Power Resistive load: 1000kW
Installed Capacity Resistive load: 1000kW
Load Step 1,2,2,5,10,10,20,50,100,200,200,200,200kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power External 380VAC/50Hz, 3 phase 4 wire, 220V 1-phase
Wire Connection

Load power supply input——Copper bar (star coupling)

Control power supply input——Connector-bar
Insulation F
Duty Cycle Continuous
Cooling Type Force air cooling, horizontal air inlet and horizontal air outlet
Transportation Hoisting, there are lifting lug on top and castors at the bottom of casing
Dimension 2440mm*1440mm*1680mm(L×W×H)
Weight About 1500kgs
Casing Color Grey(RAL7035)or as required
Operating Environment Parameter
Workplace Indoor or outdoor with canopy
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Brands of Main Components
Contactor Schneider
Fuse Miro
PLC Siemens
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)
Main features

High Efficiency Data Management: display real-time testing data, generate curves graphs automatically, also can put data into storage. According to generator set No. set up testing file, support to query at any time, and improve data management efficiency.

Comprehensive Protection Function: multiple protection, like over temperature, smoke. When in danger, automatically terminate the test and give alarm to protect safety of personnel and equipment.

Stable Running: with the latest generation control module as the core, a sharp rise in system response speed and anti-interference performance, avoid function failure in complex electrical environment, and ensure system running stably and reliably.

Flexible Control Mode: based on different using habit, several control modes as following can be choose, local panel operation, remote box controlling, and intelligent software.

Intelligent Loading: after setting generator rated power in software, system realize rapid loading through preset proportion, automatically and continuously load multiple power value and common tests, like stepping, full load, and over load, so that improve working efficiency.
