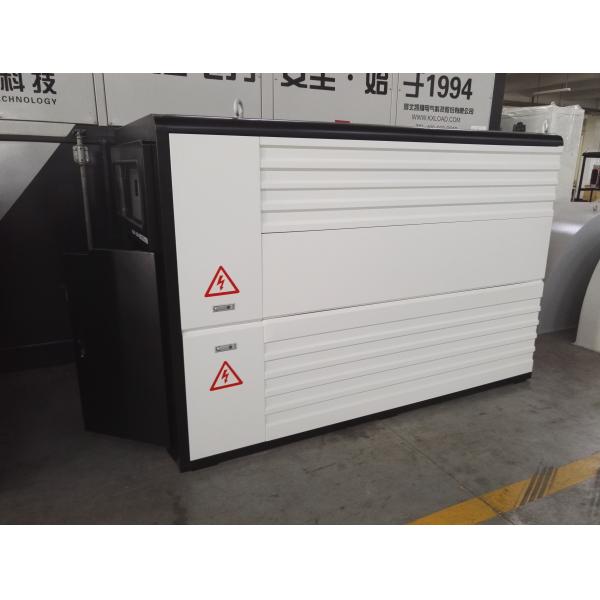

800 KW Colored Adjustable Load Bank , Real Time Parameter Automatic Load Bank
800 KW Colored Adjustable Load Bank , Real Time Parameter Automatic Load Bank
800 KW Colored Adjustable Load Bank , Real Time Parameter Automatic Load Bank
800 KW Colored Adjustable Load Bank , Real Time Parameter Automatic Load Bank
Specifications
Brand Name :
Kaixiang
Model Number :
AC400V-800kW
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
80 Sets / Month
Delivery Time :
Within 30 working days
Packaging Details :
Packaged in wooden cases
Model :
AC400V-800kW
Rated power :
800 kW
Voltage :
AC400V
Performance :
Continuous working
Power Factor :
1
Communication Interface :
RS485 RS232
Description

AC400V-800kW Adjustable Load Bank With CE certificate And Best Sales

Introduction

AC400V-800kW Adjustable Load Bank With CE certificate accurately test output power and load capacity of all kinds of generators, main electrical parameters including the dynamic parameters tested.

Application

The system can be used with a computer to realize the intelligent control, automatically completing the special test to all electrical parameters of generating set and generating tables, graphs, and supporting the print, release from the cumbersome manual operation to provide scientific and efficient detection means for the large power high voltage generating sets.

Technical specification

AC400-800kW Automatic Load Bank
Rating Voltage/Frequency

400VAC, 3 phase 4 wire, line voltage 400V, phase voltage 230V

50Hz
Rated Load Power Resistive load: 800kW
Installed Capacity Resistive load: 800kW
Load Step 1,2,2,5,10,10,20,50,100,200,200,200kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power External 380VAC/50Hz, 3 phase 4 wire, 220V 1-phase
Wire Connection

Load power supply input——Copper bar (star coupling)

Control power supply input——Connector-bar
Insulation F
Duty Cycle Continuous
Cooling Type Force air cooling, horizontal air inlet and horizontal air outlet
Transportation Hoisting, there are lifting lug on top and castors at the bottom of casing
Dimension 2300mm*1250mm*1680mm(L×W×H)
Weight About 1200kgs
Casing Color Grey(RAL7035)or as required
Operating Environment Parameter
Workplace Indoor
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Brands of Main Components
Contactor Schneider
Main features

Communication pattern: Intelligent control use photoelectric isolated RS485 interface connect to PC, with great anti-interference performance to make system control stable. Also user can use USB or RS232 through converter.

Load pattern: Manual Load or Automatic Load.

Manual Load: Input power, system will load according to preset power.

--Automatic load: user can preset power and length of working time of several load periods, as per 0%→25%→50%→75%→100% or 110% to make testing.

Parallel testing: when several load bank work in parallel, use can make parallel testing via software, can display, record parameters of every load bank and whole system parameter of parallel operation.

--Real-time parameter: through software to display voltage, current, power, power factor, frequency and time, etc.

Security monitoring and control: monitor working state of the load bank by watching software light, when abnormally stop and protect, it can show the reason.

Data save and query: all the test data is saved in the software, easy to query in the history testing data.
