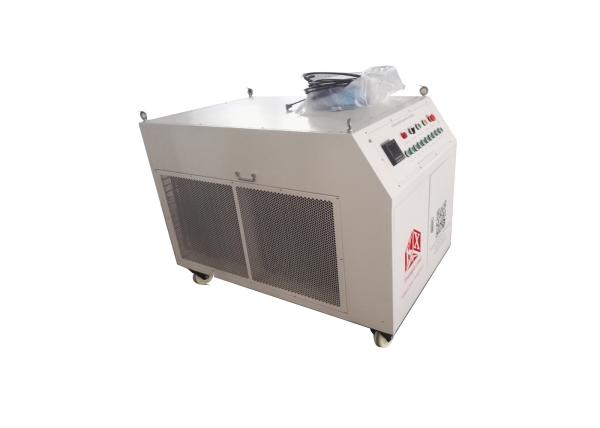

High Accuracy 200kw Generator Resistive Load Tester 3 Phase 50Hz Frequency
High Accuracy 200kw Generator Resistive Load Tester 3 Phase 50Hz Frequency
High Accuracy 200kw Generator Resistive Load Tester 3 Phase 50Hz Frequency
High Accuracy 200kw Generator Resistive Load Tester 3 Phase 50Hz Frequency
Specifications
Brand Name :
KAIXIANG
Model Number :
200KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
400VAC/50Hz, 3 phase 4 wire
Rated Load Power :
Resistive load: 200kW
Rated Voltage :
400VAC
Installed Capacity :
Resistive load: 200kW
Load Tolerance(overall) :
±3%
Control Power :
220VAC/50Hz,single phase
Description

High Accuracy 200kw Generator Resistive Load Tester 3 Phase 50Hz Frequency

Product Description

This system, which is of independent research and development of electricity load test equipment by our technology, combining dry load module with the automatic measurement and control module, can accurately detect all kinds of generator output power and load capacity, full load and overload test.


Technical Parameters

Rating Voltage/Frequency 400VAC/50Hz, 3 phase 4 wire,
Rated Load Power Resistive load: 200kW
Installed Capacity Resistive load: 200kW
Load Step 1,2,2,5,10,10,20,50.100kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 220VAC/50Hz, single phase
Wire Connection

Load power supply input——terminal block
Control power supply input——three pin socket
Insulation F
Duty Cycle Continuous
Casing Dimensions and Cooling about 1450*900*870mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
Weight About 200kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

Intelligent Loading: after setting generator rated power in software, system realize rapid loading through preset proportion, automatically and continuously load multiple power value and common tests, like stepping, full load, and over load, so that improve working efficiency.

Application

Large generator system testing in ocean engineering, drilling facilities,ship construction

etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Assist shipyard in mooring test,sea trial test
