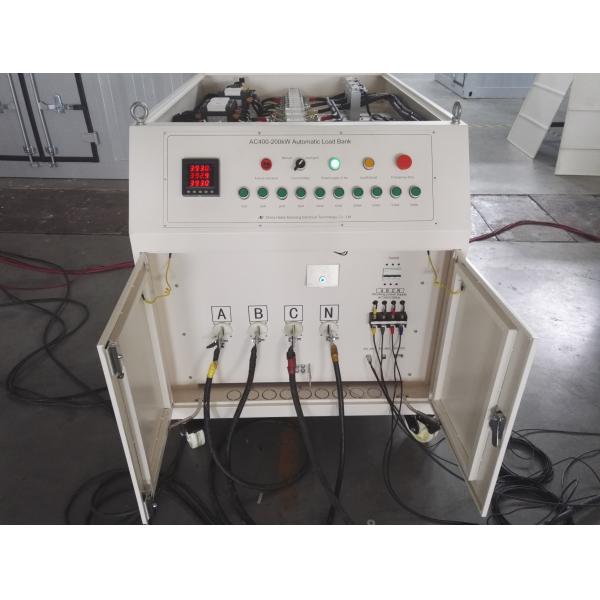

Professional Design 200Kw Load Bank Forced Air Cooling For Drilling Facilities
Professional Design 200Kw Load Bank Forced Air Cooling For Drilling Facilities
Specifications
Brand Name :
KAIXIANG
Model Number :
AC400-200KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
400VAC/50Hz, 3 phase 4 wire,
Rated Voltage :
400VAC
Installed Capacity :
Resistive load: 1000kW
Control Power :
380VAC/50Hz, 3 phase 4 wire,
size :
1450*900*870mm
Weight :
200kg
Description

Professional Design 200Kw Load Bank Forced Air Cooling For Drilling Facilities

Product Description

1.our load bank an accurately test output power and load capacity with all kinds of generators.

2.System consists of testing/control and load bank, mainly includes AC load bank, data capture system, auto load/unload control system, heat dissipation device, assist control and PC software.

3.User can control load bank through local control panel, also through software

Technical Parameters

Rating Voltage/Frequency 400VAC/50Hz, 3 phase 4 wire,
Rated Load Power Resistive load: 200kW
Installed Capacity Resistive load: 200kW
Load Step 1,2,2,5,10,20,20,50,100kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 220VAC/50Hz, 1 phase
Wire Connection

Load power supply input——Copper bar (star coupling)

Control power supply input——Three pin socket
Insulation F
Duty Cycle Continuous
Casing Dimensions and Cooling about 1450*900*870mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
Weight About 200kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

(1) Control Mode: local, remote or intelligent control(software) for choosing.

(2) Local Control: local control panel with several power steps, load or unload by switch on-off and read parameter values from measuring meter.

Application

1.Manufacturers of small gas engines also use load banks to test newly manufactured engines under various mechanical loads.

2.This is accomplished by connecting the engine to the load bank via a device called a dynamometer.

3.engine performance is monitored and, if necessary, adjustments are made to ensure the product performs within intended specifications.
