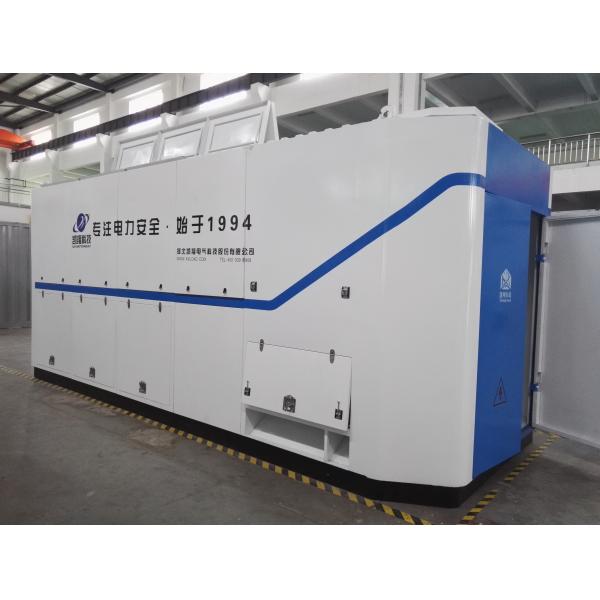

3000KVA Electrical Inductive Load Bank For Diesel Generator Testing
3000KVA Electrical Inductive Load Bank For Diesel Generator Testing
3000KVA Electrical Inductive Load Bank For Diesel Generator Testing
3000KVA Electrical Inductive Load Bank For Diesel Generator Testing
Specifications
Brand Name :
KAIXIANG
Model Number :
AC400-3000KVA
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 Sets per Month
Delivery Time :
Within 30 working days
Packaging Details :
Wooden Case for Load bank
Casing Dimensions and Cooling :
about 7058*2350*2591mm (length*width*height) Forced air cooling，Horizontal inlet air，Vertical cooling
Transportation :
Hoisting, there are lifting lug in top of casing
Casing Color :
Grey（RAL7035）
Ambient Temperature :
-10℃～+50℃
Voltage range :
AC400v 50hz ±10%
Display Precision :
0.5 class
Description

In Russian Market 3000KVA Inductive Load Bank for Diesel Generator Testing

Product description

load banks are devices which contain resistive,inductive and/or capacitive loads,apply the load to an electrical power source and dissipate the power of the electrical source .unlike the on-site loads which are randomly variable in terms of many electrical parameters ,load banks provide predetermines and controllable load which serves power source usings energy output to test,support or protect the power source


Technical Parameter

Rating Voltage/Frequency 400VAC/50Hz, 3 phase 4 wire,
Voltage range 400v 50hz ±10%
Max Rated power

Apparent Power: 3000kVA
Resistive Power: 2400kW
Reactive Power: 1800kvar
Load Resolution

Resistive load:1.2.2.5.10.10.20.50.100.200kw*11
Reactive load: 1.2.2.5.10.10.20.50.100.200kvar*8
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power AC380VAC/50Hz,3 phase 4 wire
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Terminal Block
Communication Interface RS485,
Casing Dimensions and Cooling about 7058*2350*2591mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling
Weight About 12600kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

Stable Running: with the latest generation control module as the core, a sharp rise in system response speed and anti-interference performance, avoid function failure in complex electrical environment, and ensure system running stably and reliably.

Application

Manufacturers of small gas engines also use load banks to test newly manufactured engines under various mechanical loads. This is accomplished by connecting the engine to the load bank via a device called a dynamometer. Again, engine performance is monitored and, if necessary, adjustments are made to ensure the product performs within intended specifications.


3000KVA Electrical Inductive Load Bank For Diesel Generator Testing
