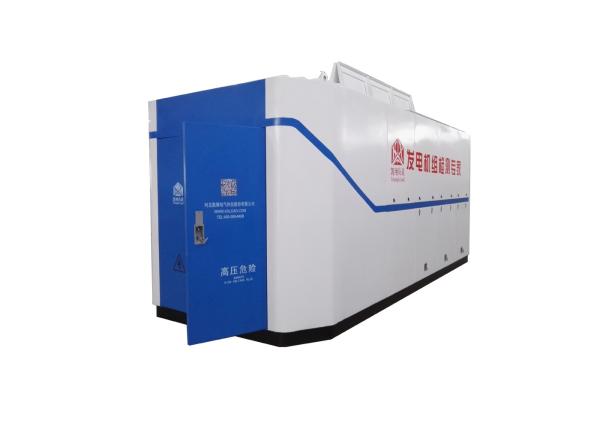

Automatic AC High Power Resistor Load Bank 3 Phase 3000KVA Good Performance
Automatic AC High Power Resistor Load Bank 3 Phase 3000KVA Good Performance
Specifications
Brand Name :
KAIXIANG
Model Number :
AC400-3000KVA
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 Sets per Month
Delivery Time :
Within 30 working days
Packaging Details :
Wooden Case for Load bank
Casing Dimensions and Cooling :
about 7058*2350*2591mm (length*width*height) Forced air cooling，Horizontal inlet air，Vertical cooling
Transportation :
Hoisting, there are lifting lug in top of casing
Casing Color :
Grey（RAL7035）
Ambient Temperature :
-10℃～+50℃
Voltage range :
AC400v 50hz ±10%
Display Precision :
0.5 class
Description

3000KVA Inductive Load Bank for Diesel Generator Testing In Russian Market

Product description

1. Automatic AC load bank main used to test the capability and aging degree for high-power ups on-line, inverter, switch power and diesel generator set for electric power, telecom department and manufacturer.
2. It can ensure the reliability of constant power charge that adopts uniformly stepped power input, energy consumption work model and forced air-cooling model.
3. It is of high power density, no red hot phenomenon and automatic protection function overheated.
4. It can’t be overheated and broken when the fans stop working
5. The complete machine can be operated simply and maintain convenient that adopts module design. It can test voltage and current according to client’s request, and provide scientific test measures for high-power AC equipment.

Technical Parameter

Rating Voltage/Frequency400VAC/50Hz, 3 phase 4 wire,
Voltage range400v 50hz ±10%
Max Rated power

Apparent Power: 3000kVA
Resistive Power: 2400kW
Reactive Power: 1800kvar

Load Resolution

Resistive load:1.2.2.5.10.10.20.50.100.200kw*11
Reactive load: 1.2.2.5.10.10.20.50.100.200kvar*6

Load Tolerance (each step)±5%
Load Tolerance(overall)±3%
Display Precision0.5 class
Control PowerAC380VAC/50Hz,3 phase 4 wire
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Terminal Block

Communication InterfaceRS485,
Casing Dimensions and Coolingabout 7058*2350*2591mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling
WeightAbout 12600kgs/set
TransportationHoisting, there are lifting lug in top of casing
Casing ColorGrey(RAL7035)
Ambient Temperature-10℃～+50℃
Relative Humidity≤95%
Altitude≤1500 meter
Atmospheric Pressure86～106kPa
ContactorSchneider
FuseDELIXI
MCUINFINEON
Data processing softwareKaixiang(self-developed)
Alloy ResistanceKaixiang(self-developed)


Product Advantage

Load interface: steady-state test load methods are managed in the load interface. In load( or unload) process, system according to presetting load step and interval, increase( or decrease) to the power value step-by-step. In automatic load stage, system extends current stage or goes to next stage.

Application

Generators installed in the field must be periodically tested and exercised to ensure that it will operate as intended when a power outage actually occurs. Service groups use load banks to apply a load that mimics the load of the facility the generator is protecting. Any problems with the generator can then be identified and rectified in a non-critical environment.
