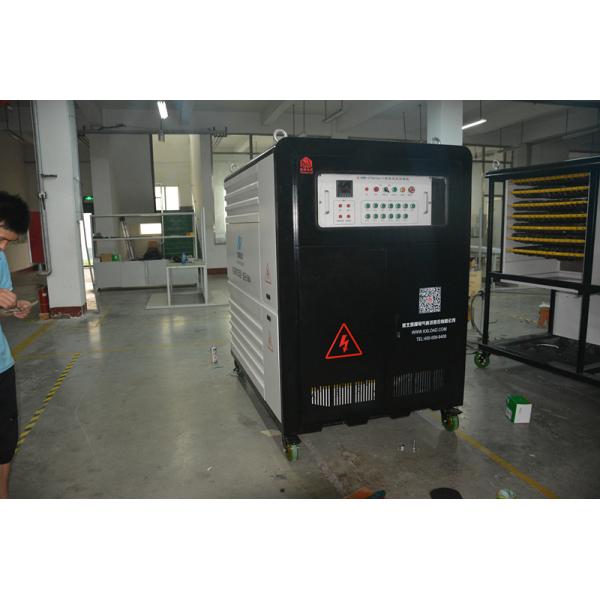

250KVA Programmable Load Bank 3 Phase 4 Wire Electrical Load Bank For Industry
250KVA Programmable Load Bank 3 Phase 4 Wire Electrical Load Bank For Industry
Specifications
Brand Name :
KAIXIANG
Model Number :
AC400-250KVA
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 Sets per Month
Delivery Time :
Within 30 working days
Packaging Details :
Wooden Case for Load bank
Casing Dimensions and Cooling :
about 2400*1400*1680mm (length*width*height) Forced air cooling，Horizontal inlet air，Vertical cooling
Transportation :
Hoisting, there are lifting lug in top of casing
Casing Color :
Grey（RAL7035）
Ambient Temperature :
-10℃～+50℃
Voltage range :
AC400v 50hz ±10%
Display Precision :
0.5 class
Description

250KVA Inductive Load Bank With 86 ～106 KPa Atmospheric Pressure

Product description

1. System consists of testing/control and load bank, mainly includes AC load bank, data capture system, auto load/unload control system, heat dissipation device, assist control and PC software.
2. User can control load bank through local control panel, also through software


Technical Parameter

Rating Voltage/Frequency 415VAC/50Hz, 3 phase 4 wire,
Voltage range 380v 50hz ±10%
Max Rated power

Apparent Power: 670kVA
Resistive Power: 200kW
Reactive Power: 150kvar
Load Resolution

Resistive load:1.2.2.5.10.10.20.50.100kw
Reactive load: 1.2.2.5.10.10.20.50.50kvar
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power AC380VAC/50Hz,3 phase 4 wire
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Terminal Block
Communication Interface RS485,
Casing Dimensions and Cooling about 2400*1400*1680mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling
Weight About 1000kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

This system, which is of independent research and development of electricity load test equipment by our technology, combining dry load module with the automatic measurement and control module, can accurately detect all kinds of generator output power and load capacity, full load and overload test.

Application

Motor manufacturing: The load bank is an ideal test equipment for generator power ,the frequency,the voltage,the current,power factor and other generator parameters.Most of the generator use the diesel oil,which can cause the fuel oil unfilled,carbon deposition ,complete machine efficiency reduced when the diesel oil load is lower than 50% or in idling situation for a long time and even cause starting difficulty ,power insuffciency,oil consumption increased,finally,opening the cylinder for maintenance too early and the abandonment ,so the load bank will be generator's ideal false load

250KVA Programmable Load Bank 3 Phase 4 Wire Electrical Load Bank For Industry
