Rated Voltage Use Ac Load Bank Electrical Load Testing Equipment 400V 2000kw
Rated Voltage Use Ac Load Bank Electrical Load Testing Equipment 400V 2000kw
Specifications
Brand Name :
KAIXIANG
Model Number :
AC400-2000KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Resistive load :
2000KW
Load Tolerance :
±3%
Control Power :
380VAC/50Hz, 3 phase 4 line, 220V 1-phase
Insulation :
F
Altitude :
≤1500 meter
Color :
grey
Description

Rated Voltage Used 400V 2000kw Electrical Resistance Resistive Load Bank

Product Description

The system can accurately test output power and load capacity with all kinds of generators. System consists of testing/control and load bank, mainly includes AC load bank, data capture system, auto load/unload control system, heat dissipation device, assist control and PC software. User can control load bank through local control panel, also through software.

Technical Parameter

Rating Voltage/Frequency 400VAC/50Hz, 3 phase 4 wire,
Rated Load Power Resistive load: 2000kW
Installed Capacity Resistive load: 2000kW
Load Step 1,2,2,5,10,10,20,50,100,100,200kW*9, total 19 steps,
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 380VAC/50Hz, 3 phase 4 wire,

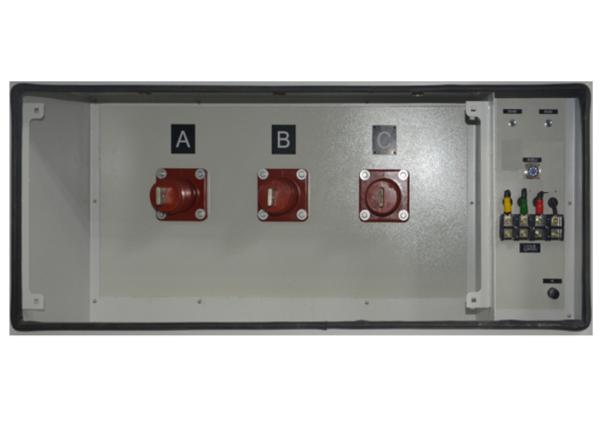

Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——terminal block
Insulation F
Protection Grade IP21
Way of Working Continuous Working
Casing Dimensions and Cooling about 4000*2350*2591mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling
Weight About 5500kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

1 Local manual control: there is local control panel in load bank, with multi load steps, min load steps 1kW, controlled by buttons.

2 Intelligent control: user can control load bank by data processing software of PC to make automatic load/unload, display, record and manager the test data, form curve, graph and can be printed.

Control mode interlock: there is switch in control panel to choose control mode, other control mode is invalid if user choose one control mode.

With data processing software, could form curve of current, active power, reactive power, apparent power, power factor, frequency and can be printed.

One-key load/unload: user can load or unload with one key easy to control.

3 line LED multi-function meter display.


Application

1.Manufacturers of standby power generators commonly use load banks to test and tune newly assembled units

2.generator has been set up in a test cell within the factory, a test engineer uses the load bank to apply a discrete, selectable electrical load to the generator and measure the response stability and endurance.

3.During this process, the test engineer calibrates and adjusts the generator performance to ensure it meets the intended product specifications and tolerances.
