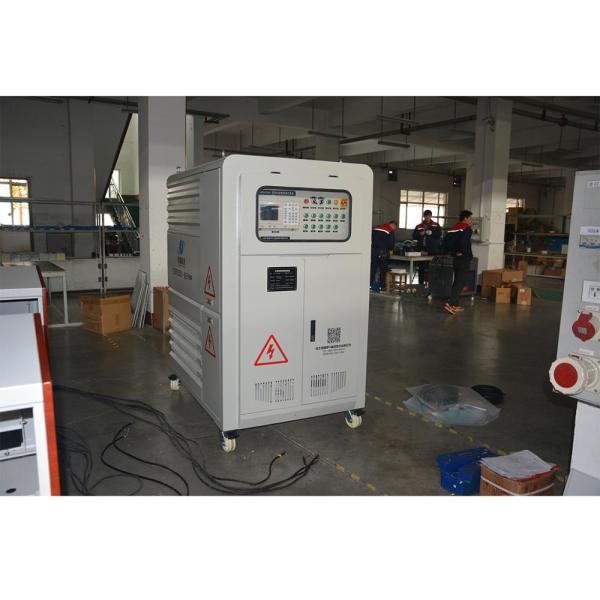

High Precision Waterproof Power Banks Resistance Load Bank 500kw Generator Testing
High Precision Waterproof Power Banks Resistance Load Bank 500kw Generator Testing
High Precision Waterproof Power Banks Resistance Load Bank 500kw Generator Testing
High Precision Waterproof Power Banks Resistance Load Bank 500kw Generator Testing
Specifications
Brand Name :
KAIXIANG
Model Number :
500KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
380VAC/50Hz, 3 phase 4 wire, line voltage 380V, phase voltage 220V
name :
High Precision Waterproof Power Banks Resistance Load Bank
Rated Voltage :
380 VAC
Installed Capacity :
Resistive load: 500kW
Load Tolerance(overall) :
±3%
Control Power :
400VAC/50Hz, 3 phase 4 wire, 230V 1-phase
Description

High Precision Waterproof Power Banks 500kw AC Load Bank For Generator Testing

Product Description

Load/unload with one key:Either by manual control or software control, user can preset the power, then press load master button. Load bank loaded according to preset power to avoid load fluctuation during the power changing.
Control Pattern: user can choose local control and intelligent control.
Local Control: There is local control panel with several power steps; user can load/unload by button.

Technical Parameters

Rating Voltage/Frequency380VAC/50Hz, 3 phase 4 wire, line voltage 380V, phase voltage 220V
Rated Load PowerResistive load: 500kW
Installed CapacityResistive load: 500kW
Load Step1,2,2,5,10,20,20,50,100,100,200kW, min step load: 1kW
PF(Power Factor)1
Load Tolerance (each step)±5%
Load Tolerance(overall)±3%
Display Precision0.5 class
Control Power400VAC/50Hz, 3 phase 4 wire, 230V 1-phase
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Connector-bar

InsulationF
Duty CycleContinuous
Casing Dimensions and Coolingabout 1600*2400*2100mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
WeightAbout 1500kgs/set
TransportationHoisting, there are lifting lug in top of casing
Casing ColorGrey(RAL7035)
Ambient Temperature-10℃～+50℃
Relative Humidity≤95%
Altitude≤2500 meter
Atmospheric Pressure86～106kPa
ContactorSchneider
FuseDELIXI
MCUINFINEON
Data processing softwareKaixiang(self-developed)
Alloy ResistanceKaixiang(self-developed)


Product Advantage

Intelligent Control: Through data processing software in PC, user can make automatic load, display, record and manage testing data, form curves and tables, also print them.
Control Pattern interlock: There is control pattern switch, when choose one control pattern, the other pattern is invalid to avoid the clash.
Local meter display data: Local meter can display 3 phases voltage, current, active power, frequency and so on.
Load testing: Can load power that within the rated power, test and display stable state 3 phases voltage, current, active power, frequency, working time, etc of generator sets.

Application

Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment
