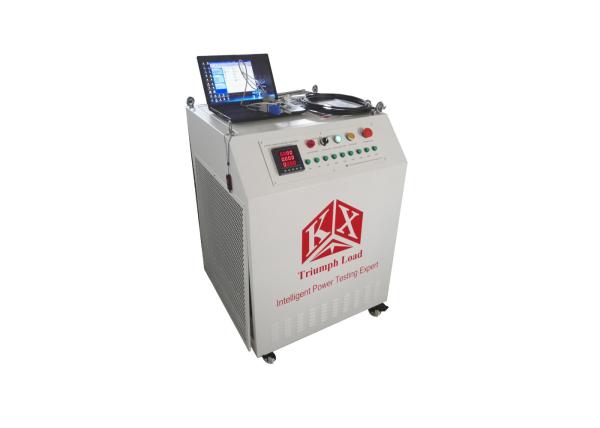

High Load Power Phase Voltage AC Load Bank 400V 200Kw ISO9001 Approved
High Load Power Phase Voltage AC Load Bank 400V 200Kw ISO9001 Approved
High Load Power Phase Voltage AC Load Bank 400V 200Kw ISO9001 Approved
High Load Power Phase Voltage AC Load Bank 400V 200Kw ISO9001 Approved
Specifications
Brand Name :
KAIXIANG
Model Number :
200KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rated Power :
200kw
Installed Capacity :
Resistive load: 200kW
Frequency :
50 / 60HZ
Rated Voltage :
400VAC 3 phase 4 wire 50hz
Load Tolerance (each step) :
±5%
Load Tolerance(overall) :
±3%
Control Power :
220VAC, 1 phase 50 Hz,
Insulation :
F
Description

High Load Power Phase Voltage 400V 200Kw Load Bank 0.5 Grade Orange

Product Description

1. load bank can accurately test the output power and load capacity of various generator sets

2. the system consists of two parts of measurement and loading, including AC load bank, data acquisition system, automatic load and drop control system, cooling device, auxiliary control,PC software,and so on.

3.The user can freely select local control or software control to operate the load bank.

Technical Parameters

Rating Voltage/Frequency 200Kw at 400VAC, 3 phase 4 wire, 50 Hz,
Max Load Power Resistive load:200kW
Load Steps 1kW,2kW,2kW,5kW,10kW,20kW,20kW,50kW, 100kW,min load step: 1 kW
PF(Power Factor) 1
Load Accuracy (each step) ±5%
Load Accuracy (overall) 3%
Display Precision 0.5 grade
Control Power 220VAC, 1 phase 50 Hz,
Wire Connection

Load power supply input——busbar

Control power supply input——three pin socket
Insulation F
Way of Working Continuous Work
Cooling Fan forced cooling, horizontal inlet air and vertical outlet cooling
Casing Color Grey(RAL7035)
Dimensions 1450 mm*900mm*870mm(length*wide*high)
Weight About 750kgs
Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Contactor Schneider
Fuse DELIXI
Alloy Resistance (self-developed)


Product Advantage

The data processing software is installed in the notebook or PC, customer can connect computer and load bank by data transmission line, and then realize all the test function by intelligent control through the software

Application

Large generator system testing in ocean engineering, drilling facilities,ship construction

etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Assist shipyard in mooring test,sea trial test
Assist with the acceptance of the vessel generator test
Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment
