0.5 Grade 400V 200Kw AC Load Bank / Electrical Load Testing Equipment 3 Phase 4 Wire
0.5 Grade 400V 200Kw AC Load Bank / Electrical Load Testing Equipment 3 Phase 4 Wire
0.5 Grade 400V 200Kw AC Load Bank / Electrical Load Testing Equipment 3 Phase 4 Wire
0.5 Grade 400V 200Kw AC Load Bank / Electrical Load Testing Equipment 3 Phase 4 Wire
Specifications
Brand Name :
KAIXIANG
Model Number :
200KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rated Power :
200kw
Installed Capacity :
Resistive load: 200kW
Frequency :
50 / 60HZ
Rated Voltage :
400VAC 3 phase 4 wire 50hz
Load Tolerance (each step) :
±5%
Load Tolerance(overall) :
±3%
Control Power :
220VAC, 1 phase 50 Hz,
Insulation :
F
Description

0.5 Grade Orange LCD display Intelligent 400V 200Kw Load Bank

Product Description

1.our load bank an accurately test output power and load capacity with all kinds of generators.

2.System consists of testing/control and load bank, mainly includes AC load bank, data capture system, auto load/unload control system, heat dissipation device, assist control and PC software.

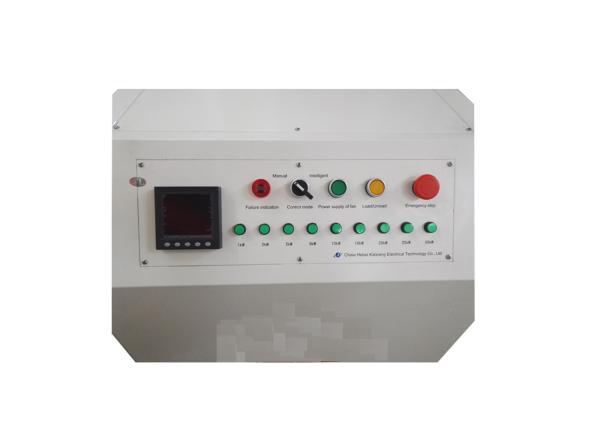

3.User can control load bank through local control panel, also through software

Technical Parameters

Rating Voltage/Frequency 200Kw at 400VAC, 3 phase 4 wire, 50 Hz,
Max Load Power Resistive load:200kW
Load Steps 1kW,2kW,2kW,5kW,10kW,20kW,20kW,50kW, 100kW,min load step: 1 kW
PF(Power Factor) 1
Load Accuracy (each step) ±5%
Load Accuracy (overall) 3%
Display Precision 0.5 grade
Control Power 220VAC, 1 phase 50 Hz,
Wire Connection

Load power supply input——busbar

Control power supply input——three pin socket
Insulation F
Way of Working Continuous Work
Cooling Fan forced cooling, horizontal inlet air and vertical outlet cooling
Casing Color Grey(RAL7035)
Dimensions 1450 mm*900mm*870mm(length*wide*high)
Weight About 750kgs
Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Contactor Schneider
Fuse DELIXI
Alloy Resistance (self-developed)


Product Advantage

Communication type: through RS232, RS485

Load mode: manual load or automatic load.

Manual load: input power and power factor.

Automatic load: User can set several periods of power and time, and in turn of 0%→25%→50%→75%→100%, etc preset order to make automatic load testing.

Parallel testing: when several load banks parallel working, parameters of each load bank can be displayed and recorded, so do the final parameters of paralleling working.

Application

1.Manufacturers of standby power generators commonly use load banks to test and tune newly assembled units

2.generator has been set up in a test cell within the factory, a test engineer uses the load bank to apply a discrete, selectable electrical load to the generator and measure the response stability and endurance.

3.During this process, the test engineer calibrates and adjusts the generator performance to ensure it meets the intended product specifications and tolerances.
