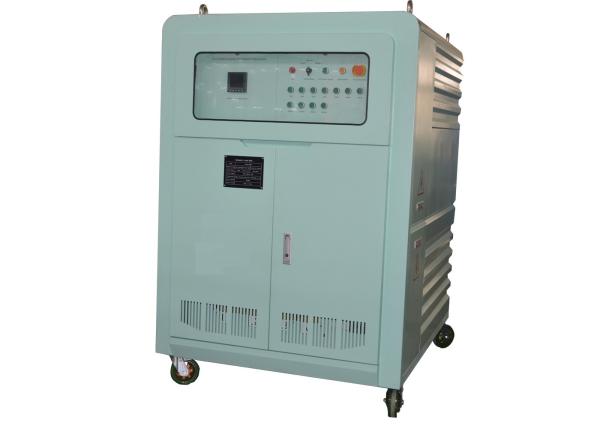

High Voltage Data Center AC Load Bank 1000KW 50Hz 86～106kPa Atmospheric Pressure
High Voltage Data Center AC Load Bank 1000KW 50Hz 86～106kPa Atmospheric Pressure
High Voltage Data Center AC Load Bank 1000KW 50Hz 86～106kPa Atmospheric Pressure
High Voltage Data Center AC Load Bank 1000KW 50Hz 86～106kPa Atmospheric Pressure
Specifications
Brand Name :
KAIXIANG
Model Number :
1000KW
Certification :
ISO9001
Place of Origin :
HEBEI CHINA
MOQ :
ONE SET
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
Supply Ability :
20 SETS ONE MONTH
Delivery Time :
ONE MONTH AFTER GET DEPOSIT
Packaging Details :
WOODEN CASE
Rating Voltage :
400VAC/50Hz, 3 phase 4 wire
Rated Load Power :
Resistive load: 1000kW
Rated Voltage :
400 VAC
Installed Capacity :
Resistive load: 1000kW
Load Tolerance(overall) :
±3%
Control Power :
380VAC/50Hz, 3 phase 4 wire, 230V 1-phase
Description

High Voltage Data Center AC Dummy 1000KW Load Bank With Wheel

Product Description
1. Supply most robust, high-capacity designs
2. intelligent operator controls,safety indication layouts, adjustable load step resolution, and lightweight designs
3. solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems

Technical Parameters

Rating Voltage/Frequency400VAC/50Hz, 3 phase 4 wire,
Rated Load PowerResistive load: 1000kW
Installed CapacityResistive load: 1000kW
Load Step1,2,2,5,10,20,20,50,100,200,200,200,200kW, min step load: 1kW
PF(Power Factor)1
Load Tolerance (each step)±5%
Load Tolerance(overall)±3%
Display Precision0.5 class
Control Power380VAC/50Hz, 3 phase 4 wire,
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Connector-bar

InsulationF
Duty CycleContinuous
Casing Dimensions and Coolingabout 1680*2400*1440mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
WeightAbout 1200kgs/set
TransportationHoisting, there are lifting lug in top of casing
Casing ColorGrey(RAL7035)
Ambient Temperature-10℃～+50℃
Relative Humidity≤95%
Altitude≤1500 meter
Atmospheric Pressure86～106kPa
ContactorSchneider
FuseDELIXI
MCUINFINEON
Data processing softwareKaixiang(self-developed)
Alloy ResistanceKaixiang(self-developed)


Product Advantage

Parallel testing: when several load banks parallel working, parameters of each load bank can be displayed and recorded, so do the final parameters of paralleling working.
Real-time parameter: Current, voltage, power, power factor, frequency, time, etc could be displayed by software.
Safety monitoring: User can know the working conditions of load bank through software indicating light. When in abnormal stop protection, software will indicate the reasons of stopping.
Data collection interval: the min saving interval is 2 seconds.

Application

1.Manufacturers of standby power generators commonly use load banks to test and tune newly assembled units
2.generator has been set up in a test cell within the factory, a test engineer uses the load bank to apply a discrete, selectable electrical load to the generator and measure the response stability and endurance.
3.During this process, the test engineer calibrates and adjusts the generator performance to ensure it meets the intended product specifications and tolerances.
