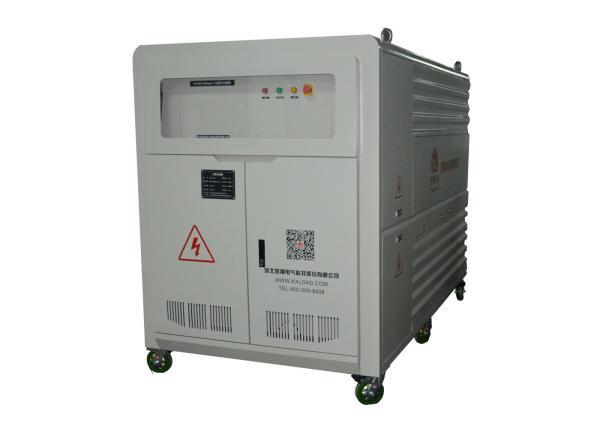

Durable Genset 3 Phase Inductive Load Bank For Generator Load Test
Durable Genset 3 Phase Inductive Load Bank For Generator Load Test
Specifications
Brand Name :
KAIXIANG
Model Number :
AC400-1000KVA
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 Sets per Month
Delivery Time :
Within 30 working days
Packaging Details :
Wooden Case for Load bank
Casing Dimensions and Cooling :
about 4000*2350*2591mm (length*width*height) Forced air cooling，Horizontal inlet air，Vertical cooling
Transportation :
Hoisting, there are lifting lug in top of casing
Casing Color :
Grey（RAL7035）
Ambient Temperature :
-10℃～+50℃
Voltage range :
AC400v 50hz ±10%
Display Precision :
0.5 class
Description


Genset Load Bank 1000KVAConnection Box / Load Bank Cabinet Grey Casing Color

Product description

According to the special requirements of users on site, in the agreement the technical standards of AC500-1000kVA-RL Intelligent Load Bank (hereinafter referred to as "system") and its accessories are proposed including their function, performance, usage, structure, installation and test to provide users with a high efficient and reliable choice, in order to meet the need for generator load test.

Technical Parameter

Rating Voltage/Frequency400VAC/50Hz, 3 phase 4 wire,
Voltage range400v 50hz ±10%
Max Rated power

Apparent Power: 1000kVA
Resistive Power: 800kW
Reactive Power: 600kvar

Load Resolution

Resistive load:1.2.2.5.10.10.20.50.100.200.200.200kw
Reactive load: 1.2.2.5.10.10.20.50.100.200.200kvar

Load Tolerance (each step)±5%
Load Tolerance(overall)±3%
Display Precision0.5 class
Control PowerAC380VAC/50Hz,3 phase 4 wire
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Terminal Block

Communication InterfaceRS485,
Casing Dimensions and Coolingabout 4000*2350*2591mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling
WeightAbout 3600kgs/set
TransportationHoisting, there are lifting lug in top of casing
Casing ColorGrey(RAL7035)
Ambient Temperature-10℃～+50℃
Relative Humidity≤95%
Altitude≤1500 meter
Atmospheric Pressure86～106kPa
ContactorSchneider
FuseDELIXI
MCUINFINEON
Data processing softwareKaixiang(self-developed)
Alloy ResistanceKaixiang(self-developed)


Product Advantage

User could load any power within rated power, can test stable state three-phase voltage, current, active power, apparent power, power factor, frequency, running time of generating set.
Whether load/unload by manual control panel or by PC software control, user can pre-set the power then press the master load button.
Control mode: user can choose local manual control or Intelligent control(PC control)

Application

Motor manufacturing: The load bank is an ideal test equipment for generator power ,the frequency,the voltage,the current,power factor and other generator parameters.Most of the generator use the diesel oil,which can cause the fuel oil unfilled,carbon deposition ,complete machine efficiency reduced when the diesel oil load is lower than 50% or in idling situation for a long time and even cause starting difficulty ,power insuffciency,oil consumption increased,finally,opening the cylinder for maintenance too early and the abandonment ,so the load bank will be generator's ideal false load.

Durable Genset 3 Phase Inductive Load Bank For Generator Load Test
