1kW-10kW Silicon Carbide Heating Element 1500C SiC Element For Oven
1kW-10kW Silicon Carbide Heating Element 1500C SiC Element For Oven
Specifications
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
Spark Industry (Henan) Co., Ltd.
Delivery Time :
15 work days
Packaging Details :
WOODEN CASE
Hot Zone Length :
100-300mm
Diameter :
8-55mm
Application :
Furnaces
Maximum Temperature :
1500°C
Shape :
Dumbbell
Material :
Silicon Carbide
Voltage :
220V/380V
Features :
High Temperature Resistance, Fast Heating, Long Service Life
Heating Zone :
Single/Double
Cold Zone Length :
100-300mm
Length :
200-3000mm
Terminal Type :
Threaded/Non-threaded
Power :
1-10kW
Resistance :
1.2-2.0Ω
Place of Origin :
China
Brand Name :
SONGYU
Description

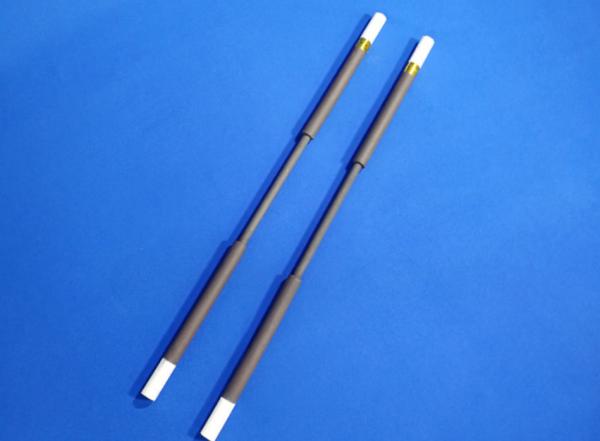

DB ( Dumbbell ) Type Silicon Carbide
What is a silicon carbide (SiC) heating element? It is a non-metallic heating component that is widely used in high-temperature applications. The main material is ultra pure green hexagonal silicon carbide, which is processed at a high temperature of 2400 °C to form billets and silicon crystals.
This heating element can operate in an oxidizing atmosphere at a temperature of up to 1450 °C and has a continuous service life of 2000 hours. It offers excellent thermal conductivity and resistance to high temperatures.
The evolution of heating element designs includes the development of dumbbell shaped components with enlarged cold ends. These were initially designed to reduce the cold end temperature by increasing the cross-section and reducing resistance. However, with advancements in technology, non dumbbell or ED type components have emerged as more efficient alternatives.
These newer components use advanced technology to maintain terminal cooling and have lower electrical resistivity. They offer improved performance and are more space-efficient. Understanding the properties and evolution of silicon carbide heating elements can help users make informed decisions when choosing heating solutions for their specific applications.

Diameter 9mm
Shape Rod
Resistance 1.2Ω
Maximum Temperature 1500°C
Power 1.5kW
Hot Zone 150mm
Application Furnaces
Cold Zone 150mm
