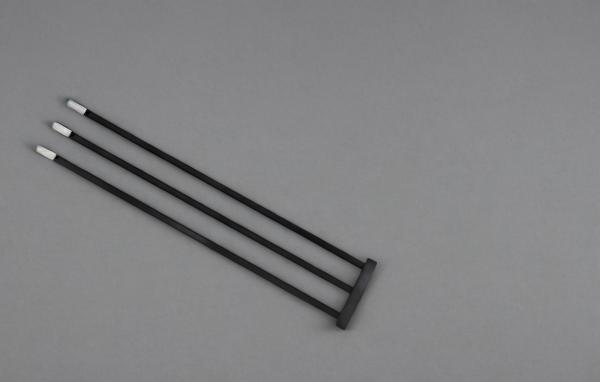

7kW 8kW 9kW SiC Silicon Heating Element 400V 1600C Silicon Carbide Elements
7kW 8kW 9kW SiC Silicon Heating Element 400V 1600C Silicon Carbide Elements
Specifications
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
Spark Industry (Henan) Co., Ltd.
Delivery Time :
15 work days
Packaging Details :
WOODEN CASE
Shape :
U Shape
Terminal Type :
Threaded, Non-threaded
Max. Working Temperature :
1600°C
Heating Zone :
Single Zone, Double Zone, Three Zone
Voltage :
220V, 380V, 400V, 480V
Thermal Conductivity :
14W/m·K
Diameter :
9mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm
Cold End Length :
150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Terminal Material :
Molybdenum Disilicide (MoSi2)
Power :
1.5kW, 2kW, 2.5kW, 3kW, 3.5kW, 4kW, 4.5kW, 5kW, 6kW, 7kW, 8kW, 9kW, 10kW
Resistance :
1.2Ω, 1.5Ω, 1.8Ω, 2.2Ω, 2.6Ω, 3.0Ω, 3.5Ω, 4.0Ω, 4.5Ω, 5.0Ω, 6.0Ω, 7.0Ω, 8.0Ω
Maximum Surface Load :
9W/cm²
Length :
300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm
Hot Zone Length :
150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Place of Origin :
China
Brand Name :
SONGYU
Description

W Type SiC Heating Elements
Although the W-shaped silicon carbide rod has many advantages, there may be some challenges associated with its use. For example, the threaded connection may require careful installation to ensure a tight fit and prevent leakage of heat. Additionally, the silicon carbide material may be brittle and require careful handling to avoid damage.
To address these issues, manufacturers can provide detailed installation instructions and guidelines. They can also offer training and support to ensure that users are able to install and operate the rod correctly. In terms of handling, proper packaging and transportation methods can be implemented to minimize the risk of damage.
Another potential issue is the compatibility of the rod with different types of equipment. To ensure compatibility, manufacturers can provide specifications and recommendations for use with specific types of furnaces and heating systems.

Maximum Load 30kg
Power 2.5kW
Shape W Shape
Maximum Operating Temperature 1600°C
Hot Zone Length 200mm
Material Silicon Carbide
