W Type SiC Heating Elements 380V 400V Silicon Carbide Heater Customized
W Type SiC Heating Elements 380V 400V Silicon Carbide Heater Customized
Specifications
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
Spark Industry (Henan) Co., Ltd.
Delivery Time :
15 work days
Packaging Details :
WOODEN CASE
Shape :
U Shape
Terminal Type :
Threaded, Non-threaded
Max. Working Temperature :
1600°C
Heating Zone :
Single Zone, Double Zone, Three Zone
Voltage :
220V, 380V, 400V, 480V
Thermal Conductivity :
14W/m·K
Diameter :
9mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm
Cold End Length :
150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Terminal Material :
Molybdenum Disilicide (MoSi2)
Power :
1.5kW, 2kW, 2.5kW, 3kW, 3.5kW, 4kW, 4.5kW, 5kW, 6kW, 7kW, 8kW, 9kW, 10kW
Resistance :
1.2Ω, 1.5Ω, 1.8Ω, 2.2Ω, 2.6Ω, 3.0Ω, 3.5Ω, 4.0Ω, 4.5Ω, 5.0Ω, 6.0Ω, 7.0Ω, 8.0Ω
Maximum Surface Load :
9W/cm²
Length :
300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm
Hot Zone Length :
150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Place of Origin :
China
Brand Name :
SONGYU
Description

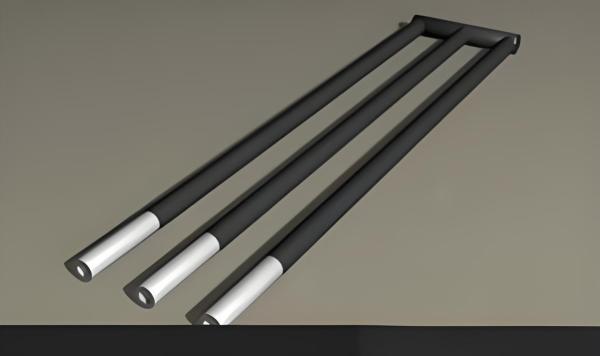

W Type SiC Heating Elements
Unlike traditional heating elements, the W-shaped silicon carbide rod offers several distinct advantages. The three parallel rods in the heating part provide a more uniform heat distribution compared to single rod designs. This results in more consistent heating and better performance.
The use of a bolt and connecting plate for the connection between the heating part and the connecting part is a significant improvement over other connection methods. For example, some heating elements may use welded connections, which can be prone to failure over time. The threaded connection provided by the bolt and screw holes offers a more reliable and durable connection.
In addition, the silicon carbide material used in this rod is superior to many other materials in terms of thermal conductivity and resistance to high temperatures. This makes it suitable for applications where high temperatures are involved, while other materials may not be able to withstand the heat.

Maximum Load 30kg
Power 2.5kW
Shape W Shape
Maximum Operating Temperature 1600°C
Hot Zone Length 200mm
Material Silicon Carbide
