SGR SiC Heating Elements Grade 1600 Silicon Heating Element 1000-6000W
SGR SiC Heating Elements Grade 1600 Silicon Heating Element 1000-6000W
Specifications
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
Spark Industry (Henan) Co., Ltd.
Delivery Time :
15 work days
Packaging Details :
WOODEN CASE
Heating Zone Length :
100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 mm
Features :
High Temperature Resistance, Fast Heating, Long Service Life
Hot Zone Length :
100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 mm
Application :
Industrial Furnaces, Lab Furnaces, etc.
Cold End Length :
100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 mm
Resistance :
1.2-2.5 Ω
Shape :
Rod, U, W, Spiral, etc.
Length :
300, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1500, 1800, 2000, 2200, 2400 mm
Max. Working Temperature :
1600°C
Maximum Power :
1000-6000 W
Material :
Silicon Carbide (SiC)
Diameter :
3/6, 4/9, 6/12, 9/18, 12/24, etc. mm
Density :
2.6-2.8 g/cm³
Voltage :
220-240 V
Place of Origin :
China
Brand Name :
SONGYU
Description

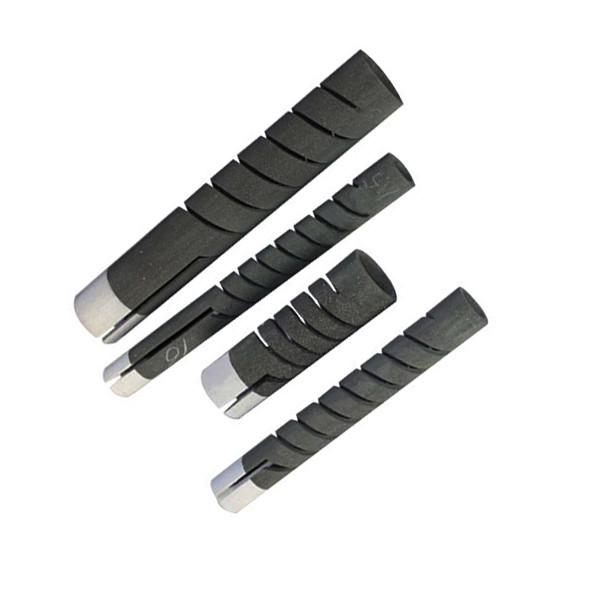

SGR Type SiC Heating Elements

The SCR (SGR, SEU) type double helix silicon carbide heating element is cut to facilitate the placement of two electrical terminals at the same end of the element. They come with terminal components. The SGR (SCR) torch furnace silicon carbide design or size excludes wiring on both sides of the furnace. This type is very suitable for blind holes, with a working temperature of up to 1500 degrees Celsius.

Resistance 1.2-2.5 Ω
Shape Rod, U, W, Spiral, etc.
Length 300, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1500, 1800, 2000, 2200, 2400 mm
Max. Working Temperature 1600°C
Maximum Power 1000-6000 W
Material Silicon Carbide (SiC)
Diameter 3/6, 4/9, 6/12, 9/18, 12/24, etc. mm
Density 2.6-2.8 g/cm³
