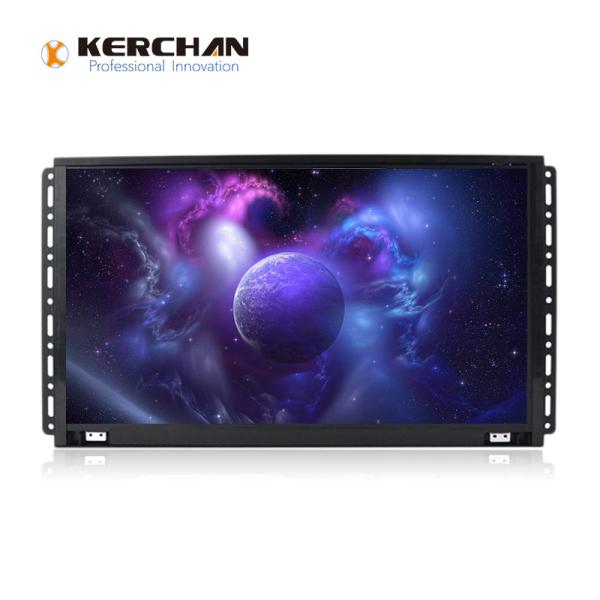

15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Kerchan
Model Number :
SAD1560K
Supply Ability :
10000 Piece/Pieces per Month pop lcd display
Packaging Details :
1pc/box, 5 pcs/carton
MOQ :
50 Piece/Pieces
Price :
Negotiable
Type :
TFT
Application :
Indoor, POP/Cardboard/shelf Display (intergrated)
Max Resolution :
1366x768
Viewing Angle :
80/80/60/80
Pixel Pitch :
0.2175(H) x 0.2088(V)
Contrast Ratio :
500:1
Brightness :
300cd/m2
Response Time :
10 ms
Input Voltage :
100-240V AC / 12V DC
Material :
Plastic Open Frame for built-in install
Function 1 :
Auto play / Auto power on or off with timer setup
Function 2 :
Power Saving Mode when use Battery for power
Optional LCD Size :
7/10.1/15.6/18.5/21.5
Optional Function 1 :
Motion Sensor Activate Playing
Optional Function 2 :
Flash Push Button Activate Playing
Optional Function 3 :
with Scanner to playing corresponding
Optional Function 4 :
Framed casing for option
Wattanty :
1 Year
Port :
Shenzhen
Description

15.6 inch HD Built in LCD slim android tablet

Do you need { 15.6" POP LCD Display and lcd monitor pop display in retail stores } with below functions ?

1. Open frame for built in/intergated casing, besides Closed frame is option;

2. Plug and Auto play with loop from SD reader or USB;

3. Auto copy contents to SD memory Cards when USB plug into machine;

4. Auto power on/off time;

5. Video play back;

6. Power Saving Ability when powered by Battery;

12V / 900-950 mA when playing

12V / 400 mA when standby by sensor (Power Saving Mode OFF)

12V / 20 mA when standby by sensor (Power Saving Mode ON)

12V /< 1 mA when standby without sensor (Power Saving Mode ON, and activate by button)

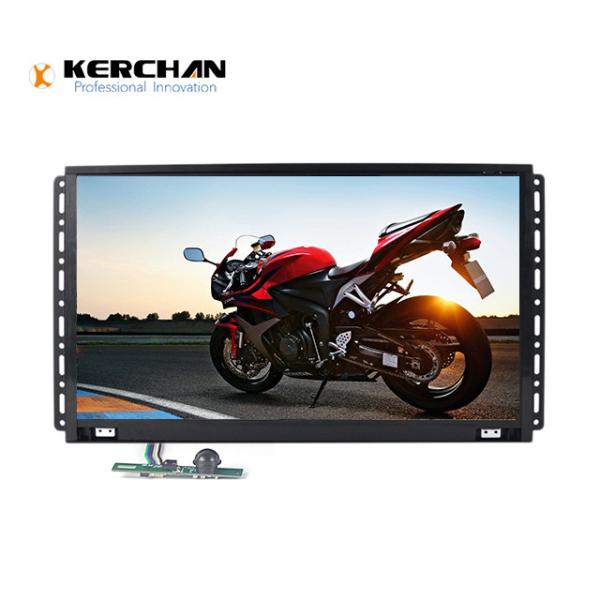

7. Extra Motion Sensor to activate playing;

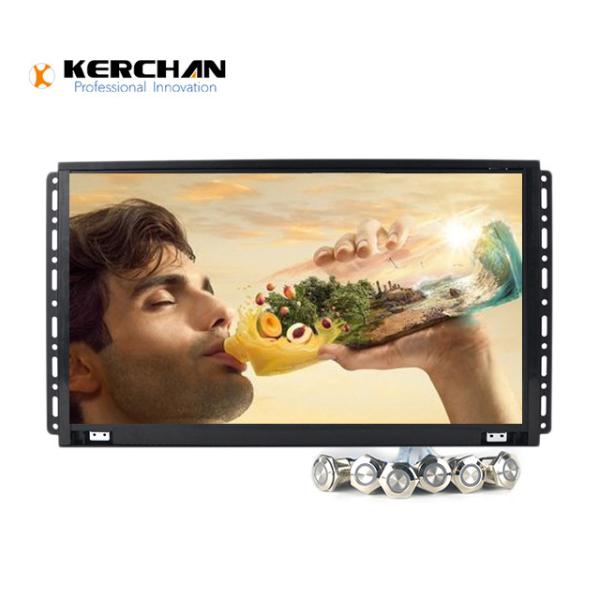

8. Extra Flash button (plastic or Metal) to activate playing; [6 standard Max; Customize can reach 12 pcs]

9. Extra Scanner to identify barcode to corresponding video display.

15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing

15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing

15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing

15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing

15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing

15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing

Panel &Specification
Contrast 500:1 Display Ratio 16:9
Panel Size 15.6" IPS Pannel (Full Angel) Pixel Pitch(mm) 0.2175(H) x 0.2088(V)
Resolution 1920*1080 View Angle 178°/178°
Brightness 250cd/m2 Life (hrs) 25000
Material Plastic Open Frame Installation VESA Standard Wall Mount
Video Resolution 1920*1080EDP Max Internal Memory 1GB-2GB (Optional)
Speaker 2 x 5W Power Supply AC 100-240V, DC 12V/2A
Packing 5pcs/CTN 47*33*37 CM 12.8KG

15.6 Inch LCD Android Tablet Open Frame For Built In / Integrated Casing
