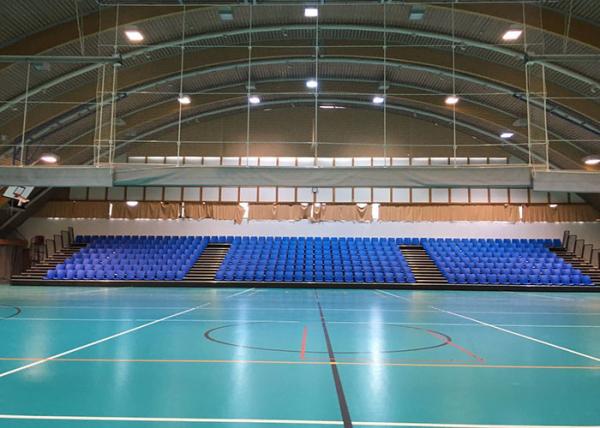

Modular Retractable Grandstands with Powder Coating Frame for Gym

Specification

• Row depth : 850 mm - 900mm or customized.
• C/C width : 460mm - 500mm
• Seat center : 460mm - 500mm
• Row riser height : 300mm - 350mm or customized
• Seat number : optional
• Frame material : steel with powder coating
• Seat color : please refer to Burgeon color swatch
• Operative method : manual or power operation
• Decking : anti - slip plywood
• Optional color : refer to pantone color swatch
• Test Report : EN 13200-5

Description

Burgeon retractable grandstands seating offers comfortable, generous seat spaces ergonomically contoured for spectator comfort. Every parts including our slant frame engineering geometry has been designed to enhance the system’s operation strength and stability. In order to meet different spaces request, burgeon telescopic tribunes provides various platform types, like wall attached unit, portable unit, recessed unit etc. These platform types enhance the flexibility and applicability of the telescopic tribunes.

This is our melody polymer seating series, its features includes :

1. The seat modules is below molded with 460mm minimum spacing.

2. It's intergrated ergonomically designed for superior comfort.

3. Melody Chair metal brackets are bolted to the plywood decks at the centre's detailed on the

drawing. Bolts with Nyloc Nuts and washers are to be used.

4. Melody seat brackets standard color is black.

5. Seat module shall have recessed pockets to accept seat number plates.

6. Blow moulded construction for greater strength and comfort

7. Reduced seat brackets available to suit 250mm risers

8. Melody polymer seat is starting with an economical nose mounting seat with a folding back, or it can

be installed with a folding mechanism and a tip - up base.

9. Fixed melody and melody with folding mechanism are available
