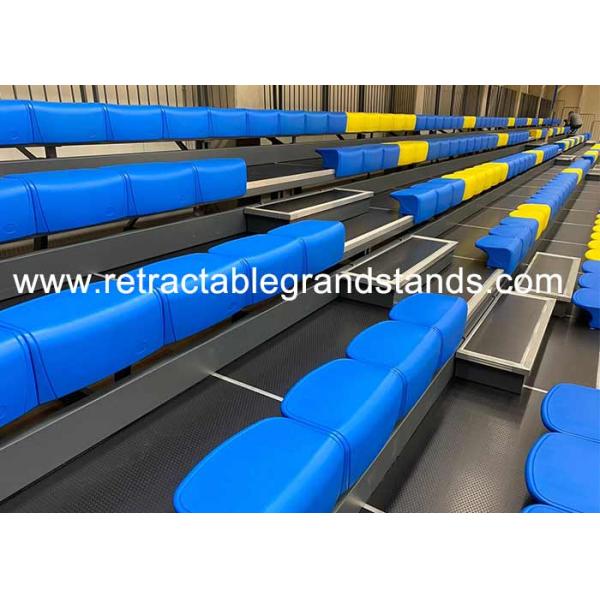

Stadium Retractable Grandstands Seating Wired / Remote Control
Stadium Retractable Grandstands Seating Wired / Remote Control
Specifications
Brand Name :
Burgeon Sport
Certification :
EN13200 - 5
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
3000 sets per month
Packaging Details :
Negotiation
Name :
Retractable Seating with Side Rails
Material :
HDPE
Color :
white and customized
Backrest :
Available Upon Request
Operation :
Wired or Remote control
Application :
Multipurposed Stadium Hall
Description

Retractable Grandstands / Retractable Seating with Side Rails for Stadium

Description:

The Echo Polymer Bench offers comfortable, generous seat spaces ergonomically contoured for spectator comfort. Designed with anatomically contoured seat surface using blow molded construction that allow form-fit deflection for maximum spectator comfort. Cantilevered to the rear to provide not less than 75mm smooth toe space beneath the seat. The rear and underside of the Echo Bench has a smooth continual flowing line to aide with the cleaning and up keep of the deck space.

Quick Detail:

Row Depth 650 mm- 850 mm/Customized
C/C Width 460mm
Backrest Available Upon Request
Row Riser height 250mm-300 mm/Customized
Stair width 920mm/1000mm/Customized
Seat centers 460mm
Material of the frame

Steel with powder coating

decking: anti-slip plywood deck
Material of the seat HDPE
Optional color refer to pantone color swatch
Operative method Manual or Power Operation

Stadium Retractable Grandstands Seating Wired / Remote Control

Understructure Introduction

A.Frame System:

1) Wheels: Wheels with non-marking poly urethane face to protect wood and synthetic floor surfaces, with molded-in metal bush and bearing to fit a10mm diameter axles secured with C Clips.

2) Slant Columns: Tubular Shape Steel (RHS).

3) Deck Stabilizer: Steel components bolted to nose and riser at three locations per section. Interlocks with adjacent stabilizer on upper tier using low-friction nylon roller to prevent separation and misalignment.

4) Deck Support: Securely captures decking for entire length of section.

B.Deck System:

1) Section Lengths: Each bank shall contain sections not to exceed 5980mm in length with a minimum of two supporting frames per row, each section.

2) Rear Riser: Continuous roll formed steel members

3) Nosing: Continuous Tubular Steel Section (RHS)

4) Deck End Overhang: Not to exceed frame support by more than 1715mm.

Features:

1. Enhance the look of you new or existing facility

2. The elevated seating position improves comfort, provides extrs leg room

3. Isolates the patron from sitting on foot traffic areas of the seting unit.

4. Bright warm colors or choose your own combination of colors from our range

5. comfortable, generous and easy to installation.
