Nose Mounted Retractable Theater Seating Bleacher Wall Attached Platform Long Lifespan
Nose Mounted Retractable Theater Seating Bleacher Wall Attached Platform Long Lifespan
Specifications
Brand Name :
Burgeon
Model Number :
Echo
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
Negotiation
Seat Name :
Retractable Bleacher Seating
Platform :
Wall Attached
Row Depth :
850 mm- 900 mm/Customized
Row Riser Height :
300mm-350 mm/Customized
Seat Number :
Optional
Decking :
Anti-slip plywood deck
Description

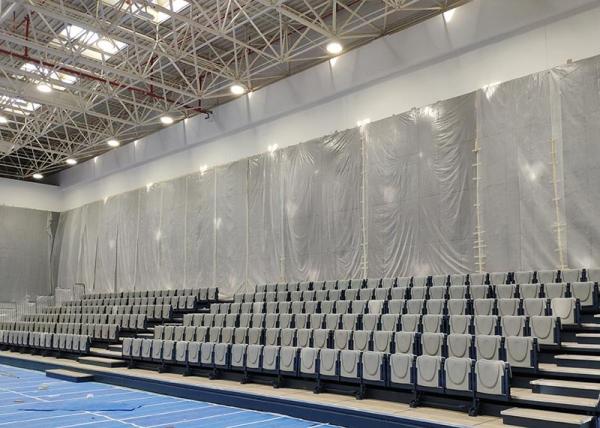

Nose Mounted Retractable Bleacher/ Telescopic Seating

Description

Burgeon Retractable seating is one of the most popular seats that is available from our diverse range of seating. It starts with an economical nose mounting seat with a folding back, or it can be installed with a folding mechanism and a tip-up base. The retractable seating is quiet to operate, strong in its design and widely used in multifunctional sport facilities.

Specification

Row Depth 850 mm- 900 mm/Customized
C/C Width 460mm-500mm
Row Riser height 300mm-350 mm/Customized
Stair width 920mm/1000mm/Customized
Seat centers 460mm-500mm
Material of the frame

Steel with powder coating

decking: anti-slip plywood deck
Material of the seat HDPE; Upholstered
Standard color

under structure: black, grey, blue color or customized

seat color: please refer to Burgeon color swatch
Optional color refer to pantone color swatch
Operative method Manual or Power Operation
Test Report EN 13200-5

Platfrom Type

1) Portable Dolly

It is the most economical for large number of small portable sections. Two dollies are required to move one section.

2) Integral Dolly

Ideal for high tier units, the integral lifting mechanism allows you to move multiple portable sections without additional equipment. Four mechanical screw jacks lift the unit and 12 large wheels allow for effortless transportation of your bleacher.

3) Travelling Unit

Power operated to manage the space to create a better atmosphere. Effortless movement forward and backward.

Operation Way

1) Manual Operation

Operating Handles: Provide and install manual operating handles constructed of 19mm OD steel tubing. Handles to engage pull-bar installed at the first tier.

2) Power Operation

A. Integrated Power: Furnish and install an integral automatic electro-mechanical powered frame propulsion system, to open and close telescopic seating.

B. Motion Monitor: Provide flashing light with self-contained warning horn mounted to the telescopic seating for audio and visual warning during integral power operation.

C. Electrical: Provide all wiring within seating bank including remote control device.

D. Electrical Switchboard and Enclosure: Provide a complete switchboard and enclosure with each seating bank.
