3500mAh Reflective Logo Retroreflectometer 220mm × 250mm × 80mm
3500mAh Reflective Logo Retroreflectometer 220mm × 250mm × 80mm
3500mAh Reflective Logo Retroreflectometer 220mm × 250mm × 80mm
3500mAh Reflective Logo Retroreflectometer 220mm × 250mm × 80mm
Specifications
Brand Name :
UNS
Model Number :
UNS-JT
Place of Origin :
CHINA
MOQ :
1
Price :
3000-3500
Payment Terms :
T/T
Supply Ability :
1000
Packaging Details :
inner box and master carton , 1pc per carton
Measurement range :
0---1999.9
Error of repeatability measurement :
≤2%
Error of reproducibility measurement :
≤3%
Color :
Red
Observation angle :
0.2°
Angle of incidence :
-4°
Testing spot diameter :
32mm
Built-in battery capacity :
3500mAh
Charger :
DC 8.4V
Instrument size :
220mm × 250mm × 80mm (L×H×W)
Description

UNS-JT Patented optical system Accurate data One key detection Manufacturer Reflective logo Retroreflectometer

The Retroreflectometer is an important technical indicator of various reflective materials, which is directly related to traffic safety. Our Country issued the GA406-2002 "Truck Reflective Marking" standard as a mandatory standard for the detection of Truck reflective materials, the Ministry of Transport issued the industry standard JT/T279-1995 "Technical Conditions for Highway Traffic Sign Boards", setting various reflective materials 5 grades as the basis for design and inspection of highway traffic signs.

Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.

Main technical parameters

Measurement items retroreflective coefficient cd .lx .m2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Built-in battery capacity 3500mAh
Charger DC 8.4V
Instrument size 220mm × 250mm × 80mm (L×H×W)

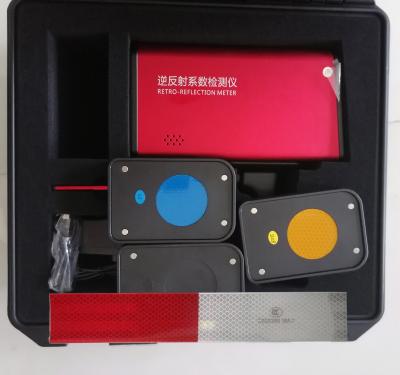

Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1

3500mAh Reflective Logo Retroreflectometer 220mm × 250mm × 80mm

3500mAh Reflective Logo Retroreflectometer 220mm × 250mm × 80mm

Our Service

Customized Logo

Free logo printing will be offered if order quantity is above 1pcs.

Our Warranty

1 Years warranty for all customers .

Spare Parts

A proportion of spare parts will be shipped along with formal orders.

Shipment

DHL , FEDEX , UPS , TNT , EMS :3-7 working days

Any other shipment way could be negoticated
