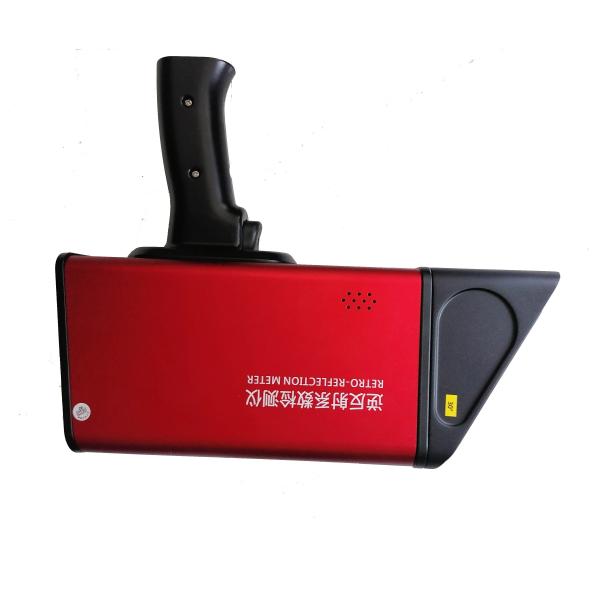

7000mAh Retro Reflective Meter With The Color Select
7000mAh Retro Reflective Meter With The Color Select
7000mAh Retro Reflective Meter With The Color Select
7000mAh Retro Reflective Meter With The Color Select
7000mAh Retro Reflective Meter With The Color Select
7000mAh Retro Reflective Meter With The Color Select
Specifications
Brand Name :
STP
Model Number :
STP-MASR
Place of Origin :
CHINA
MOQ :
1
Price :
8000-9000
Payment Terms :
T/T
Supply Ability :
1000
Packaging Details :
inner box and master carton , 1pc per carton
Performance :
simultaneous measurement of multiple angles
test data :
more than 99,999
Observation angle :
0.2°、0.5°、1°
Angle of incidence :
-4°、5°、15°、30°
Ambient humidity :
＜98%, no frost
Built-in battery capacity :
7000mAh
Charger :
DC 8.4V
Instrument size :
220mm × 250mm × 80mm (L×H×W)
Data storage space :
16GB
Light source color temperature :
2856±50K (Standard illuminant A)
Description

Storing more than 99,999 test data information of Multi Angle Retroreflectometer with the color select

The retroreflective marking measuring instrument is an instrument used to measure the photometric performance (retroreflective coefficient R') of retroreflective materials on site. It is an easy-to-use hand-held photoelectric instrument. It can also be used for traffic safety management and highway, railway, aviation and other related departments to conduct on-site measurement of retroreflective signs, etc., and can also be used for the reflective performance of truck reflective signs. The measurement is used to monitor the reflective quality of the produced retroreflective materials to ensure that the retroreflective marking materials meet the requirements of the relevant standards.

The retroreflective coefficient is an important technical indicator of various reflective materials, which is directly related to traffic safety. Our Country issued the GA406-2002 "Truck Reflective Marking" standard as a mandatory standard for the detection of Truck reflective materials, the Ministry of Transport issued the industry standard JT/T279-1995 "Technical Conditions for Highway Traffic Sign Boards", setting various reflective materials 5 grades as the basis for design and inspection of highway traffic signs.

Main technical parameters

Measurement items retroreflective coefficient cd .lx .m-2
Measurement range 0---1999.9
Observation angle
0.2°,0.5°,1°
Angle of incidence
-4°,5°,15°,30°
Error of repeatability measurement
 ≤2%
Error of reproducibility measurement
 ≤3%
Charger DC 8.4V
Ambient humidity
＜98%, no frost

Packing list

Serial number Name Specification Number
01
Multi Angle Retro-Reflection Meter
 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1

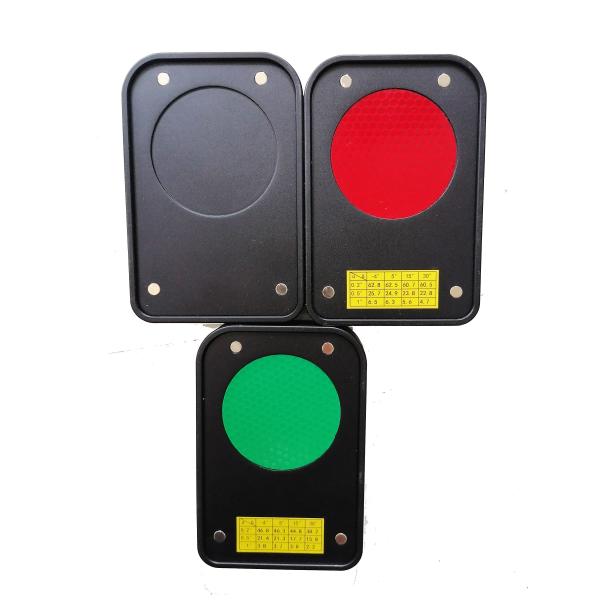

07 Calibration Board 1
08
Touch pen
1

7000mAh Retro Reflective Meter With The Color Select

7000mAh Retro Reflective Meter With The Color Select

Our Service

Customized Logo

Free logo printing will be offered if order quantity is above 1pcs.

Our Warranty

1 Years warranty for all customers .

Spare Parts

A proportion of spare parts will be shipped along with formal orders.

Shipment

DHL , FEDEX , UPS , TNT , EMS :3-7 working days

Any other shipment way could be negoticated
