Multi Angle Retroreflectometer Magnetic Suction Calibration Method
Multi Angle Retroreflectometer Magnetic Suction Calibration Method
Multi Angle Retroreflectometer Magnetic Suction Calibration Method
Multi Angle Retroreflectometer Magnetic Suction Calibration Method
Multi Angle Retroreflectometer Magnetic Suction Calibration Method
Multi Angle Retroreflectometer Magnetic Suction Calibration Method
Specifications
Brand Name :
STP
Model Number :
STP-MASR
Place of Origin :
CHINA
MOQ :
1
Price :
8000-9000
Payment Terms :
T/T
Supply Ability :
1000
Packaging Details :
inner box and master carton , 1pc per carton
LCD :
4.3-inch
Master module :
32 MCU
Observation angle :
0.2°、0.5°、1°
Angle of incidence :
-4°、5°、15°、30°
Net Weight :
1.92KG
Warranty :
1 year
Menu operation :
English/Chinese
Gross Weight :
6.0kg
Instrument size :
220mm × 250mm × 82mm (L×H×W)
Measurement items :
retroreflective coefficient cd .lx-1 .m-2
Description

Magnetic suction calibration method of Multi Angle Retroreflectometer with Multiple measurements to calculate the averag

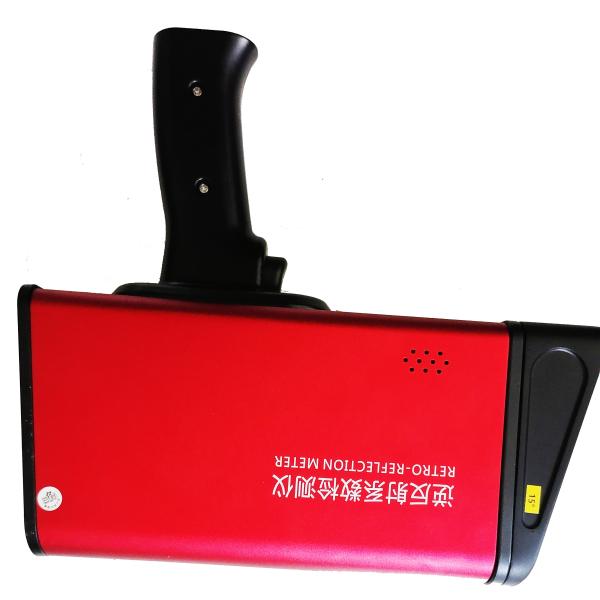

Multi Angle Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.
The retroreflective coefficient detector is an instrument used to measure the retroreflective coefficient of reflective materials on the truck, road traffic signs at all levels, and reflective strips of various signs clothing. It can also be used for reflective sticker manufacturers to detect and control product quality, and for quality supervision departments to detect reflective material.

Main technical parameters

Measurement items retroreflective coefficient cd .lx .m-2
Measurement range 0---1999.9
Observation angle
0.2°,0.5°,1°
Angle of incidence
-4°,5°,15°,30°
Error of repeatability measurement
 ≤2%
Error of reproducibility measurement
 ≤3%
Charger DC 8.4V
Ambient humidity
＜98%, no frost

Packing list

Serial number Name Specification Number
01
Multi Angle Retro-Reflection Meter
 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08
Touch pen
1

Multi Angle Retroreflectometer Magnetic Suction Calibration Method

Multi Angle Retroreflectometer Magnetic Suction Calibration Method

Our Service

Customized Logo

Free logo printing will be offered if order quantity is above 1pcs.

Our Warranty

1 Years warranty for all customers .

Spare Parts

A proportion of spare parts will be shipped along with formal orders.

Shipment

DHL , FEDEX , UPS , TNT , EMS :3-7 working days

Any other shipment way could be negoticated
