1.High separation efficiency: Industrial reverse osmosis membrane has high separation efficiency, can effectively remove impurities, ions and microorganisms in water, and achieve high-quality separation effect.
2.Energy saving and environmental protection: Compared with traditional filtration technology, industrial reverse osmosis membrane has low operating pressure, low energy consumption, environmentally friendly, and in line with the current social development trend of energy conservation and environmental protection.
3.Stable and reliable: Industrial reverse osmosis membrane has stable performance and long service life, which can ensure a continuous and stable production process. At the same time, it has good adaptability to various water qualities and can meet the production needs of different industries.
4.Easy to automate: Industrial reverse osmosis membrane technology can realize automated operation, reduce manual intervention, and improve production efficiency and product quality. This helps to reduce production costs and improve the competitiveness of enterprises
Wide range of applications: The application field of industrial reverse osmosis membrane is very wide, which can meet the production needs of different industries. Whether it is food and beverage, pharmaceuticals, electricity or seawater desalination industries, reverse osmosis membrane technology can play its unique advantages.
It is suitable for the desalination treatment of municipal tap water and groundwater with a salt content of less than 1500ppm. It can be widely used in residential water supply systems, pure water preparation plants, industry, food production and other fields.
Model | Active Membrane Area ft2(m2) | Concentrate Channel Spacer (mil) | Permeate Flow GPD(m3/d) | Stable Rejection Rate (%) | Minimum Rejection Rate (%) |

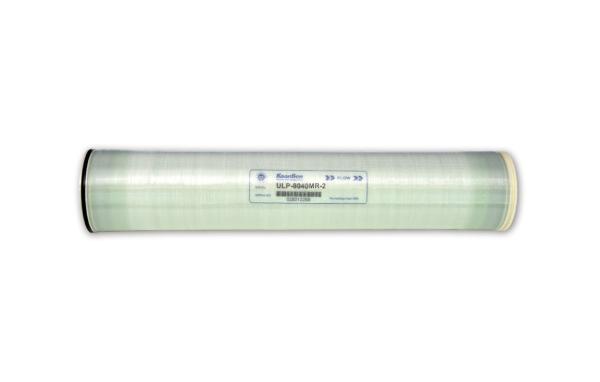

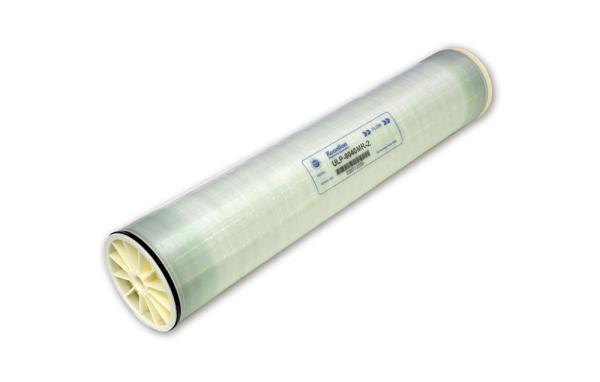

ULP-8040MR-2 | 440(40.9) | 28 | 10500(39.7) | 99.60 | 99.50 |
Concentration of Solution (NaCl) | Temperature(℃) | pH Value > | Operating Pressure psi(MPa) | Recovery Rate(%) |
1500ppm | 25 | 7.5-8 | 150(1.03) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
Max.Working Pressure | 600 psi(4.14MPa) |
Max. FeedWater Temperature | 45 ℃ |
Max. Feed Water Flow | 17.0m3/h |
Max. FeedWaterSDI15 | 5.0 |
Free Chlorine Concentration of FeedWater | 0.1mg/L |
pHRange of FeedWaterDuring Continuous Operation | 3-10 |
pHRange of FeedWaterDuring Chemical Cleaning | 2-12 |
Max. Pressure Drop of Single Membrane Element | 10psi(0.07Mpa) |
![]() | ![]() |
