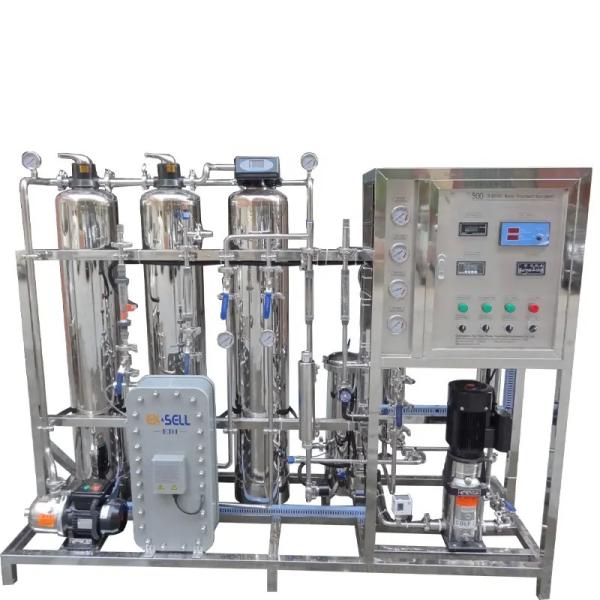

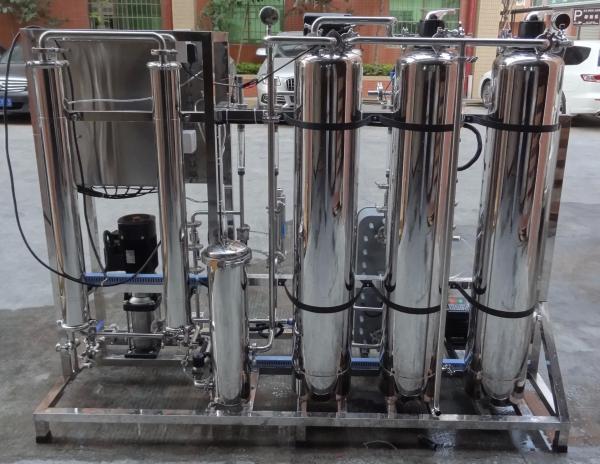

500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic Water Filed
Specifications
Brand Name :
Fenigal
Model Number :
500 LPH Ultrapure Water Machine
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Supply Ability :
60000 Units per Month
Delivery Time :
5- 8 work days
Packaging Details :
standard export packing
Product Applicable industries :
Domestic water filed
Productivity of this product :
500LPH
Product Core components :
Pressure vessel, Pump, PLC
Machine Weight (KG) :
450
Material :
SS304
Name :
Ultrapure Water Machine
Desalting Rate :
More than 97%
Water Recovery :
About 50%
Description

500 Liter Per Hour Ultrapure Water Machine SUS Tank For Domestic water filed

Products Description
ultrapure edi water treatment purification filter plant demineralizer system supplier power supply with controller

EDI, also known as electric desalination. It is a new ultra pure water technology which gradually developed in the 20th century. EDI equipment combined electro dialysis technology and ion exchange technology. It is using the selectivity penetrate function of anion and cation membrane and exchange function of ion exchange resin under direct current electric field to make ion directed migration. Finally to make deep desalination of water. In the same time, hydrogen ion and hydroxide ion which produced when water ionize will regenerate ion exchange resin. So if use EDI equipment, no need acid and alkali chemical to do any regeneration and it can produce ultra pure water continuously.
Process of EDI reverse osmosis system
raw water→ raw water tank → raw water pump →sand filter→ carbon filter→softener (optional) → security filter → high pressure pump→ reverse osmosis system → security filter →EDI system →pure water tank → water point
Product Image
Product Name
Brand
Function
Raw Water Pump
CNP/Grundfos/Danfoss
Provide needed pressure for every pre-treatment filter.
Sand Filter
Domestic
Remove the water contains sediment, manganese, rust, colloid material, and other particles.
Activated Carbon Filter
Domestic
Remove the pigment,smell,organisms, reducing the residual value of water
Water Softener (Optional)
Domestic
Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter
Domestic
Remove 5 micro particles
High Pressure Pump
CNP/Grundfos/Danfoss
Provide needed pressure for RO system
RO Membrane
USA Dupont / Hydranautics /China Vontron
Remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
UV Sterilizer /Ozone generator
Domestic / Hanovia /BNP Ozone
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water
Option Item
dosing system / CIP system / Chlorination system /Iron removal filter...
Scope Of Application
Packing & Delivery
Transportation: By sea / Air

About Us

FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment quipment design, manufacturing, trading and shipment served for main industrial sectors.


HAFE-FG Water Technologies has focused on the research of water treatment technology, equipment development and manufacturing, testing and international shipment etc. We work with many leading large-scale or small-medium original equipment manufacturers in China High-tech Development Zones, and engaged ourselves in R&D, manufacturing, and quality testing.

Our main products include a variety of water purification and different treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water rever osmosis (BWRO), ultrafiltration (UF)system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners. So far, our company has become a major water treatment equipment supplier for food and beverage industry, pharmaceutical industry, chemical industry, electric power industry, urban water supply industry, municipal and industrial wastewater treatment and more industries, as well as being an exporter to more than 20 countries and regions in Asia, Europe, the Americas, Africa, etc.
