Specifications
Model NO. :
OHQ-XXXX
Impedance(Ω) :
50
Color :
Black
Applications :
Indoor/Outdoor
Transport Package :
Carton/Palletizing
Specification :
see below data table
Trademark :
BF TECH
Origin :
China
Supply Ability :
2000000PCS/Year
Package Size :
17.00cm * 6.50cm * 2.50cm
Package Gross Weight :
0.380kg
Place of Origin :
China
MOQ :
1 Piece
Delivery Time :
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Description

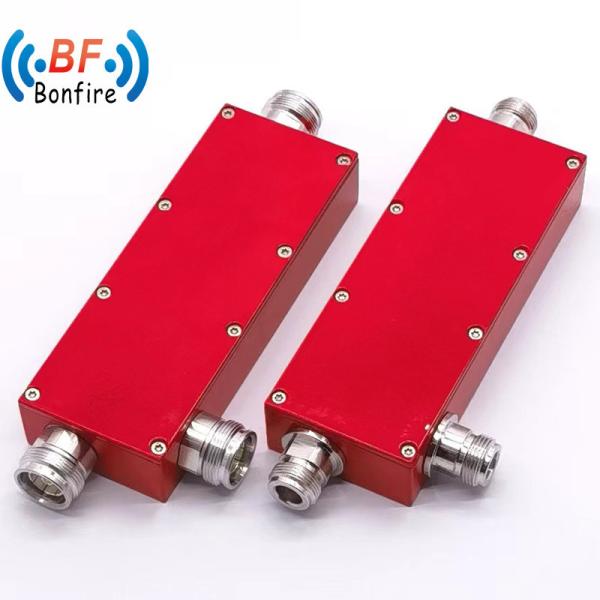

7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional CouplerFEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
Frequency Range(MHz) 698-3800
Coupling(dB) 15
Coupling Loss (dB) ±1.2
Insertion Loss (dB) ≤0.44
Isolation (dB) ≥33
VSWR ≤ 1.25
PIM3 (dBc@2*43dBm) ≤ -150
Input Power(W) 300
Impedance(Ω) 50
RF Connector 4.3-10 F
Color Black
Relative humidity 5%~95%
Operating Temperature(°C) -35 ~ +75
Applications Indoor/Outdoor(IP65)

7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional Coupler7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional Coupler7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional Coupler
7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional Coupler
7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional Coupler
7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional Coupler
7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional Coupler
7dB Low Pim RF Coupling Degree 300W 1.47dB Low Insertion Loss Cavity Directional Coupler

All our products can satisfy :

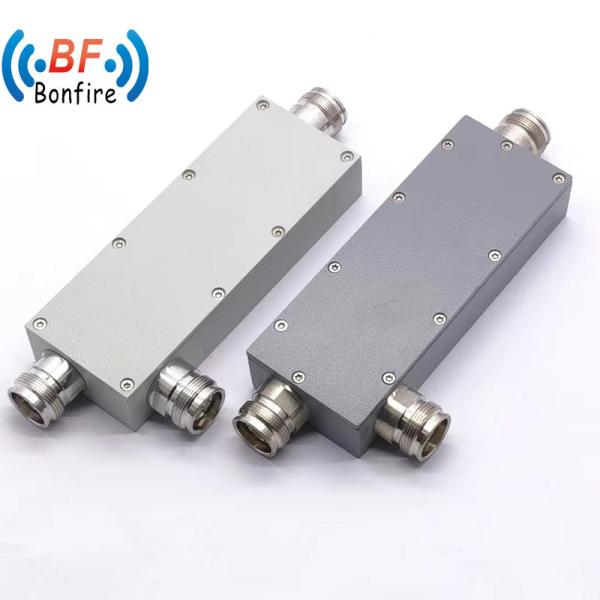

1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid

All our products category :

RF Antenna , RF combiner, Power Splitter , RF connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.

We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .


Customers we served :

HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.

Cooperate Once, Replace Never !
