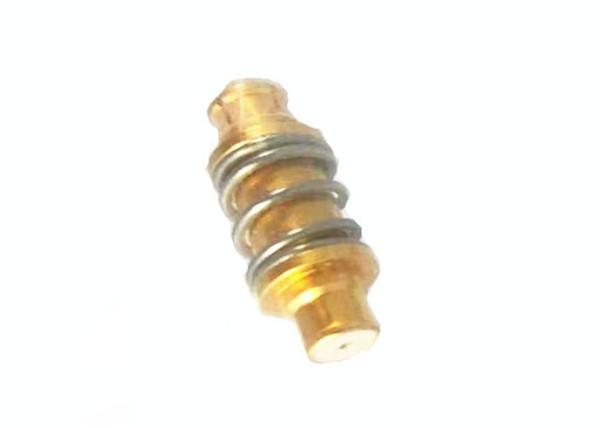

SMP Female to Female Bullet Spring Loaded Straight RF Adapters Connector

SMP is a sub-miniature push-on RF coaxial connector, which has the characters of small size, light weight, excellent
vabration-proof performance, and wide working broadband, etc. Operating frequency up to 30GHz (our product of high
performance SMP connector can reach 40GHz), and the plug has three interface forms- full detent, limited detent and
smooth bore(including with braking). Various interface forms can satisfy the required axial or radial movement of blind
mating in the couple usage of board-to-board system. It’s suitable for the install situation with the requirement of high
reliability modular intensive.

The SMP is a compact, push-on RF coaxial connector adapter that boasts a small form factor, lightweight design, excellent seismic performance, and broad operating bandwidth. It has an operating frequency range of up to 30GHz (our high-performance SMP connectors can reach 40GHz), and the plug features three interface forms: full detent, limited detent, and smooth bore (including with braking). These various interface forms can accommodate the required axial or radial movement for blind mating in the coupling of broadband to broadband connectors. The SMP is ideal for use in installations requiring high reliability and modular intensity.
Catalog SMP Adapter.pdf

Note:The specific data of the model are based on the data in the product specification sheet.

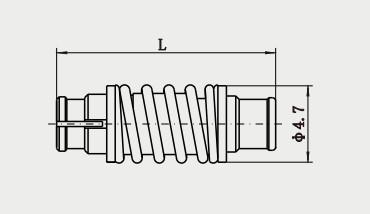

Outline Drawing of
SMP Female to SMP Female RF Adapter

NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.

Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF&Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers, Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
