Low Loss SMPM Male PCB Mount RF Plug Connector with Long Legs Microstrip
Low Loss SMPM Male PCB Mount RF Plug Connector with Long Legs Microstrip
Low Loss SMPM Male PCB Mount RF Plug Connector with Long Legs Microstrip
Low Loss SMPM Male PCB Mount RF Plug Connector with Long Legs Microstrip
Specifications
Brand Name :
ELT (Elite)
Model Number :
SSMP-JHD80
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1,000,000pcs per month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product Name :
SSMP Male Connector
Gender :
Male
Material :
Kovar
Plating :
Gold Plated
Impedance :
50Ω
Frequency Range :
DC~50GHz
Rated Voltage :
170VRMS*
Insulator :
PTFE/PEI
Description

Low-loss SMPM Male PCB Mount with Long Legs Microstrip RF Plug Connector

SMPM is a small, push-in RF coaxial connector that provides a high level of performance in a compact form factor. It is designed for use in applications where space is limited and high-density installations are required. The connector features a lightweight construction and a wide operating bandwidth, making it suitable for a variety of RF applications. Additionally, SMPM offers two interface options: full detent and unthreaded hole, providing flexibility for different installation scenarios.

Specification
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Outer conductor Normally≤3.5mΩ, Hermetic≤5mΩ
Center conductor Normally≤8mΩ , Hermetic≤30mΩ
DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5
Material & Mechanical Characteristics
Center Conductor Male

Tin Phosphor Bronze/Kovar , gold Plated
Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze/Gold plated/Passivated
Shell and other Metal Parts

Beryllium Bronze/Kovar/Stainless Steel
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325x10-3.Pa.cm3/S

Features

SMPM connector is a small, quick-connect coaxial connectorSMPM connector is a small, quick-connect coaxial connector that features excellent electrical characteristics and minimal mechanical dimensions. while also providing excellent propagation speed and low latency. In addition, SMPM connectors have outstanding performance and secure bonding/separation forces, making them widely used in high-speed digital testing and RF testing, industrial, mobile communications, aerospace, and other fields.

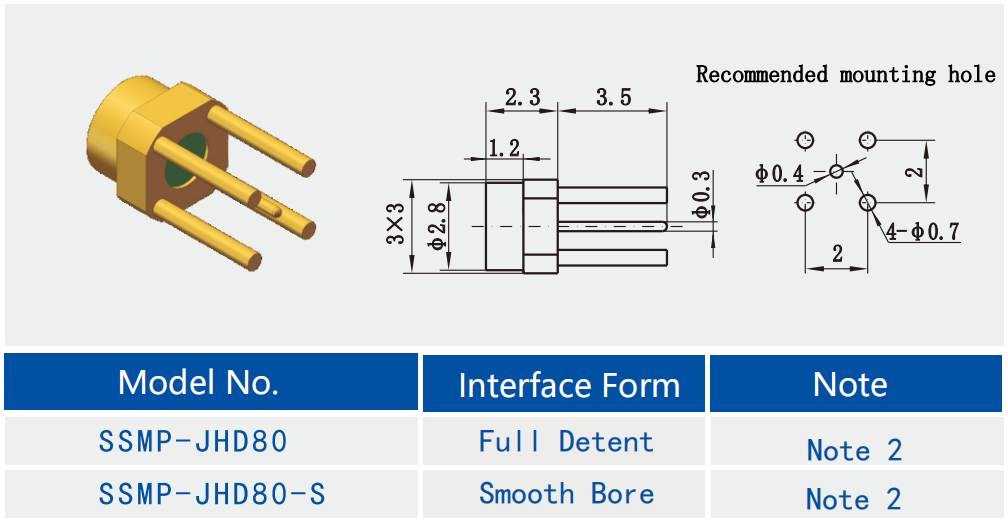

Detail Picture of Low-loss SMPM Male PCB Mount with Long Legs Microstrip RF Plug Connector(mm):Low Loss SMPM Male PCB Mount RF Plug Connector with Long Legs Microstrip

Application:

*Network

*Satellite communication

*PC/LAN

*Base station

*Outdoor facilities

*Automobile

*Jumper insertion

*Basic facilities

*Radar, microwave

*Telecommunications

*Mobile communication

*Instrumentation

*Radio and television antenna system

*RF test and measurement boards

*High-speed digital component test

NOTE:
We have over 10,000 types of SMPM RF Coaxial Connector, if the connector you are using is not found, please contact us with your details.
