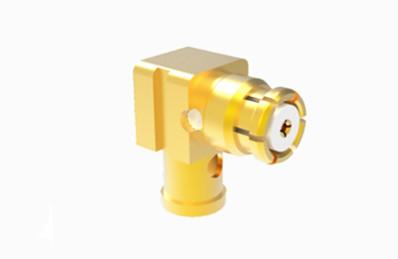

SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable
SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable
SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable
SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMP-KW506-45
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
SMP RF Coaxial Conector
Impedance :
50Ω
Certificate :
ROHS ISO-9001-2015
Durability :
500 Cycles
Gender :
Female
Body Style :
Right angle
Material :
Brass
Mount Method :
for cable
Plating :
Gold Plating
Description

SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable

The SMP interface is a subminiature connector that matches the size of MMCX connectors but extends the operational frequency range from DC to 40 GHz. The SMP interconnect series utilizes floating female-to-female adapters, often referred to as "bullets," to facilitate the stacking of circuit boards equipped with SMP male PCB connectors. This robust construction, along with its capacity to accommodate radial and axial misalignments, enables blind mating solutions. It is widely used in compact high-frequency coaxial modules.

Features and Benefits

1. Compact Size: SMP connectors are designed for applications where space is at a premium and are similar in size to MMCX (Micro-Miniature Coaxial) connectors, yet they are suited for higher frequency ranges.

2. Broad Frequency Range: SMP connectors support a wide bandwidth from DC to 40 GHz, making them suitable for various broadband wireless communication applications.

3. Floating Connector System: SMP interfaces commonly use floating female-to-female adapters (known as bullets), allowing reliable connections even with mechanical alignment tolerances, including radial and axial misalignments.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤2.5mΩ, Sealing≤4mΩ
Center conductor Normal≤6mΩ, Sealing≤26mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze,gold plated
Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/s

Detailed Drawing of

SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable:

SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable

Applications

1. Medical Devices: In the medical industry, particularly in high-frequency medical equipment like endoscopes or surgical tools, SMP connectors can be used to transmit data or video signals.

2. High-Speed Data Transmission: SMP connectors can be used in high-speed backplanes or cable assemblies for data centers, servers, and network equipment for high-speed data transfer.

3. Consumer Electronics: Some high-end consumer electronics, such as digital cameras, smartphones, and tablets, may use SMP connectors for signal or power connections.

Product Cataloge:

RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
N Type RF Connector
TNC RF Connector
MCX/MMCX RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)


NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
