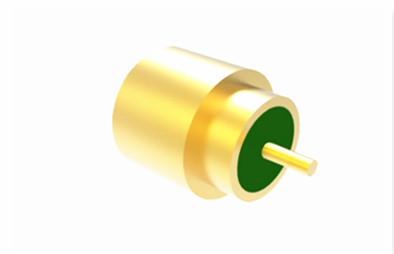

Hermtically Sealed ASMP Male PCB Mount RF Connector Full Detent Plug

The ASMP is an innovative blind-mate RF connector that shares the same structural design and method of use as the SMP. It features an outer dimension that is approximately 22% larger than the SMP, leading to an increase in transmission power by nearly 30% to 50%. The ASMP is particularly well-suited for board-to-board connections, dense modular mounting, and applications with high power demands. The male SMP connector is available in two interface types - full detent and smooth bore, whereas the female connector has a singular interface compatible with both types of male connectors.

Features:

1. Blind Mating: The design of the ASMP connector facilitates blind mating, which enables easy and accurate connection even in environments with limited visibility or access, like in densely packed circuit boards.
2. Compatibility: Despite its larger size, the ASMP connector maintains compatibility with the existing SMP connector ecosystem, allowing for ease of integration into existing systems that may already be using SMP connectors.
3. Interface Options: The male SMP connector interface types, full detent, and smooth bore, are also available in ASMP, providing flexibility in mating configurations.
4. Board-to-Board Applications: Due to its design and power-handling capability, the ASMP connector is particularly well-suited for board-to-board connections, where space is often at a premium and high power signals need to be routed effectively.

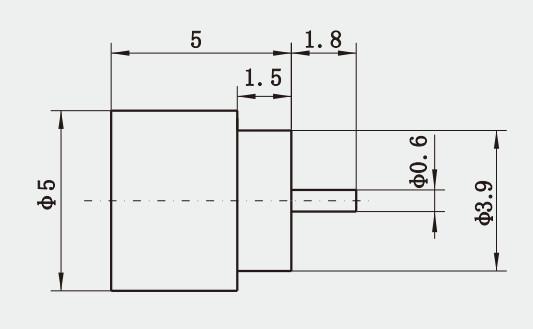

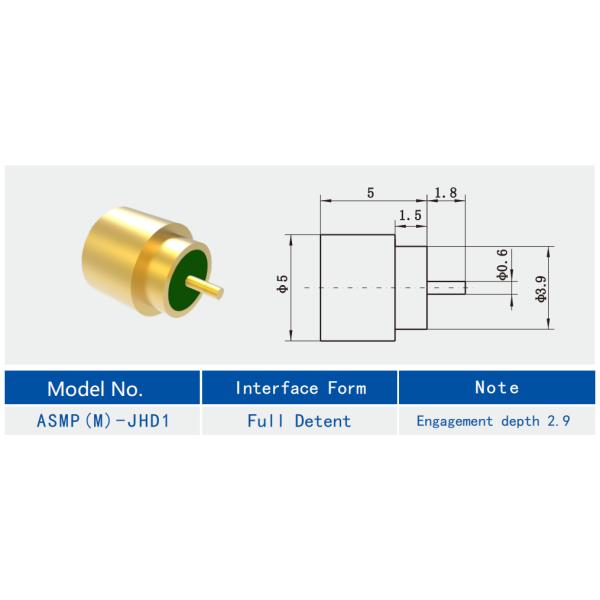

Outline Drawing of
Hermtically Sealed ASMP Male PCB Mount RF Connector Full Detent Plug

Install Introduction:



NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
