SMP Male Stainless Steel Limited Detent RF Connector Enagement Depth 2.79mm
SMP Male Stainless Steel Limited Detent RF Connector Enagement Depth 2.79mm
SMP Male Stainless Steel Limited Detent RF Connector Enagement Depth 2.79mm
SMP Male Stainless Steel Limited Detent RF Connector Enagement Depth 2.79mm
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMP-J506G-2
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Credit Card
Supply Ability :
300,000,000 pcs per year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Frequency Range :
DC~40GHz
Impedance :
50Ω
Glass :
7052 7070
Hermecity :
<1.01325 X 10E-08 std.cc/s
Insulation Resistance :
≥2000MΩ
Medium Pressure :
500VRMS*
Rated Withstand Voltage :
170VRMS*
VSWR :
≤1.3
Description

SMP Male Stainless Steel Limited Detent Enagement Depth 2.79 RF Connector

The SMP is a compact, push-on or snap-fit RF coaxial connector that boasts a small form factor, lightweight construction, impressive seismic performance, and a wide operational bandwidth. It can handle operational frequencies up to 30GHz (with our range of SMP connectors even capable of reaching 40GHz). The plugs offer three different interface options: full detent, limited detent, and smooth bore (which includes versions with breakaway features). Offering solutions for PCB mounting, cable mounting, and in-line adapters, the SMP provides interconnectivity for board-to-board, blind mating, and rack-and-panel applications while maintaining high package density. Its suitability for high-reliability and modular-intensive installations makes it a preferred choice in various critical applications.


Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS*
Insulation Resistance ≥2000MΩ
Dielectrics Voltage-resistance 500VRMS*
Center Resistance Outer conductor ≤4mΩ
Center conductor ≤26mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze, gold plated
Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/s

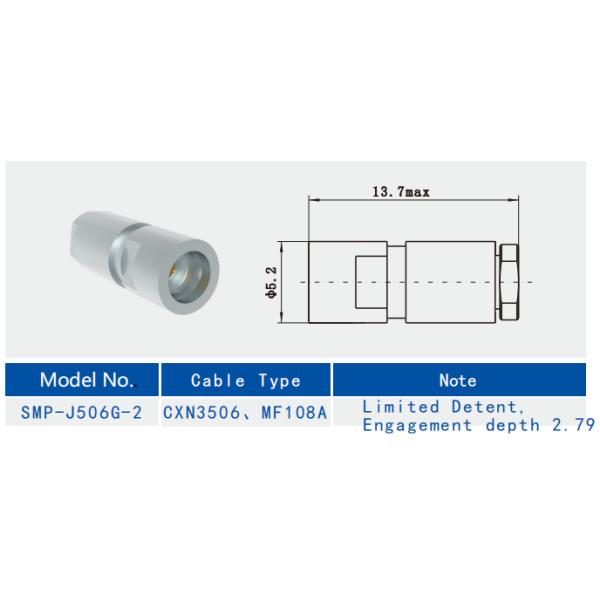

Detailed Drawing

SMP Male Stainless Steel Limited Detent RF Connector Enagement Depth 2.79mm


Features and Benefits

Gold plated
Sub-miniature
DC to 40GHz
Compact size
Push-on or snap coupling
Full detent, Limited detent and Smooth bore
PCB & cable mount connector
Male and Female, Straight and Right Angle choice
Cable mount versions for both flexible and semi-rigid cable Materials
Normal type and hermetic, Flange mount & Thread-In Mount choice

NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.


Applications

In summary, SMP RF coaxial connectors are an essential component in modern electronic devices due to their compact size, high mounting density capability, broadband performance, and ease of use.
