32.9GHz~59.6GHz WR18 BJ500 To 1.85mm Female End Launch Waveguide To Coax Adapter
32.9GHz~59.6GHz WR18 BJ500 To 1.85mm Female End Launch Waveguide To Coax Adapter
Specifications
Brand Name :
ELT
Model Number :
1.85/BJ500-KFE1
Certification :
ISO 9001:2015, ISO 14001:2015
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Credit Card, Paypal
Supply Ability :
10,0000 pcs per month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product Name :
WR18 BJ500 Waveguide to Coaxial Adapters
Material :
Brass
Frequency Range :
32.9-59.6GHz
Connector :
1.85mm
VSWR :
1.4
Impedance :
50 Ohm
Waveguide Size :
WR18,BJ500
Body Style :
End Launch
Description

32.9GHz~59.6GHz WR18 BJ500 To 1.85mm Female End Launch Waveguide To Coax Adapter

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP,SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of 1.85/BJ500-KFE1:

Product Name WR18 BJ500 Waveguide to 1.85mm Coaxial Adapters-End Launch
Model No. 1.85/BJ500-KFE1
Coaxial type 1.85mm
Waveguide Size WR18(BJ500)
Body Style End Launch
Frequency Range 32.9GHz-59.6GHz
SMA Impedance 50 Ohm
VSWR 1.4

Advantages:
-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

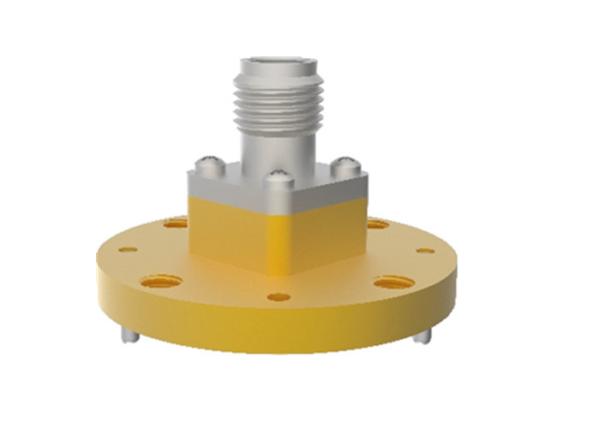

Outline Drawing and Pictures of WR18 BJ500 to 1.85mm Female Waveguide to Coax Adapter 1.85/BJ500-KFE1:
32.9GHz~59.6GHz WR18 BJ500 To 1.85mm Female End Launch Waveguide To Coax Adapter

List of Waveguide to 1.85mm Coaxial Adapters:

Model Number Description Note
1.85/BJ500-KF4 WR18(BJ500) to 1.85mm female right angle adapters
1.85/BJ500-KFE1 WR18(BJ500) to 1.85mm female end launch adapters BJ500=WR18
1.85/BJ620-KF WR14(BJ620) to 1.85mm female right angle adapters BJ620=WR14
1.85/BJ620-KFE WR14(BJ620) to 1.85mm female end launch adapters
Custom Type Customized sizes are acceptable
Related products of 1.85mm Waveguide to Coax Adapters of Elite Electronic:
32.9GHz~59.6GHz WR18 BJ500 To 1.85mm Female End Launch Waveguide To Coax Adapter
32.9GHz~59.6GHz WR18 BJ500 To 1.85mm Female End Launch Waveguide To Coax Adapter

Cross-references of waveguide Standards

Chinese Standards International Standards Frequency Range (GHz)
BJ84 WR112 6.57~9.99
BJ100 WR90 8.20~12.5
BJ120 WR75 9.84~15.0
BJ140 WR62 11.9~18.0
BJ180 WR51 14.5~22.0
BJ220 WR42 17.6~26.7
BJ260 WR34 21.7~33.0
BJ320 WR28 26.3~40.0
BJ400 WR22 32.9~50.1
BJ500 WR18 39.2~59.6
BJ620 WR14 49.8~75.8
BJ740 WR12 60.5~91.9
BJ900 WR10 73.8~112

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
