SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality
SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality
SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality
SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality
Specifications
Brand Name :
ELT(Elite)
Model Number :
SMP-KFB2-21
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Credit Card
Supply Ability :
300,000,000 pcs per year
Delivery Time :
Within 3 Weeks
Packaging Details :
Standard Export Carton
Body material :
Brass
Impedance :
50Ohm
Color :
Gold Plated
Body Style :
Straight
Type :
SMP Female RF Adapter
Engagement Force :
45N Max
Disengagement Force :
9N Min
Durability :
500 Cycles
Operating Temperature :
-55 to +125°C
Description

Superior Performance SMP Female 2-Hole Flange Mount RF Socket Connector: Reliable, Compact and High-Quality

SMP is a miniature push-on RF coaxial connector that provides excellent performance with its small size, lightweight design, and superior seismic resistance. It has an extensive operating frequency range of up to 30GHz (with our high-performance SMP connector, the frequency can reach 40GHz). The plug features three interface forms: full detent, limited detent, and smooth bore (including with catcher mitt)These various interface forms are designed to accommodate the required axial or radial movement for blind mating in broadband connector coupling applications.

The SMP connector is an ideal solution for high-reliability modular integration installations, providing reliable connectivity in a compact form factor.

General Specification for SMP Connector Adapter
Impedance
50Ω
Frequency Range
DC~40GHz
Rated Voltage
170VRMS(at sea level)
Dielectrics Voltage-resistance
500VRMS(at sea leavel)
Insulation Resistance
≥5000MΩ
Contact Resistance
Outer conductor
normal≤2.5mΩ, hermetically sealed ≤4mΩ
Center conductor
normal≤6mΩ, hermetically sealed ≤26mΩ
Frequency Range DC~18GHz 18~26.5GHz 26.5~40GHz
VSWR for straight connector
≤1.25
 ≤1.3 ≤1.4
VSWR for right angel connector ≤1.3
VSWR for adapter ≤1.25 ≤1.3 ≤1.4
VSWR other ≤1.3
Center Conductor Male
Tin Phosphor Bronze/Kovar Alloy
 gold plated
Female
beryllium bronze
 gold plated
Elastic Contact
beryllium bronze
 gold plated
Shell and other Metal Parts
brass/beryllium bronze/Kovar Alloy/copper alloy/stainless steel passivated
Insulators
glass sintering/PTFE/PEI
Leakage Rate for
hermetically sealed connector
1.01325×10-3 Pa·cm3 /s


Features:

  1. Compact size, suitable for use in space-constrained environments.
  2. Push-on connection type for easy and fast insertion and removal.
  3. High operating frequency, suitable for high-speed data transmission applications.
  4. Excellent electrical performance and high signal transmission quality.
  5. Reusable with high reliability.
  6. Good mechanical strength and durability, able to withstand vibration and impact to some extent.
  7. Supports a wide range of cable types and interface standards for excellent compatibility.

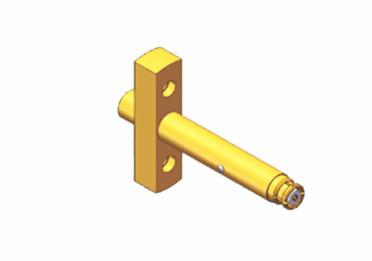

Outline Drawing of
Superior Performance SMP Female 2-Hole Flange Mount RF Socket Connector: Reliable, Compact and High-Quality
SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality

Install Introduction:
SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality
SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality

NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.

Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
