SMP Female Bulkhead RF Connector With Microstrip For Enhanced Performance And Reliability
SMP Female Bulkhead RF Connector With Microstrip For Enhanced Performance And Reliability
SMP Female Bulkhead RF Connector With Microstrip For Enhanced Performance And Reliability
SMP Female Bulkhead RF Connector With Microstrip For Enhanced Performance And Reliability
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMP-KYD4
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Credit Card
Supply Ability :
300,000,000 pcs per year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMP Female Limited Detent Hermetically Sealed Connector
Frequency Range :
DC~18GHz
Impedance :
50Ω
Connector Series :
SMP
Gender :
Female
Shell Material :
Brass
Glass :
7052 7070
Rated Voltage :
170VRMS*
Description

High-Quality SMP Female Bulkhead RF Connector with Microstrip for Enhanced Performance and Reliability

The SMP Female Bulkhead RF Connector with Microstrip is a compact push-on or snap coupling RF coaxial connector, characterized by its small size, lightweight, excellent seismic performance, and broadband capabilities. It operates up to 40GHz (with our SMP connector product reaching 30GHz), and the plug features three interface forms: full detent, limited detent, and smooth bore (including with braking). The PCB mount, cable mount, and in-series adapters provide an interconnect solution for board-to-board, blind mate, and rack-and-panel applications while maintaining package density. It is suitable for high-reliability modular intensive installations.


Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 170VRMS*
Insulation Resistance ≥5000MΩ
Dielectrics Voltage-resistance 500VRMS*
Center Resistance Outer conductor ≤4mΩ
Center conductor ≤26mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze, gold plated
Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/s

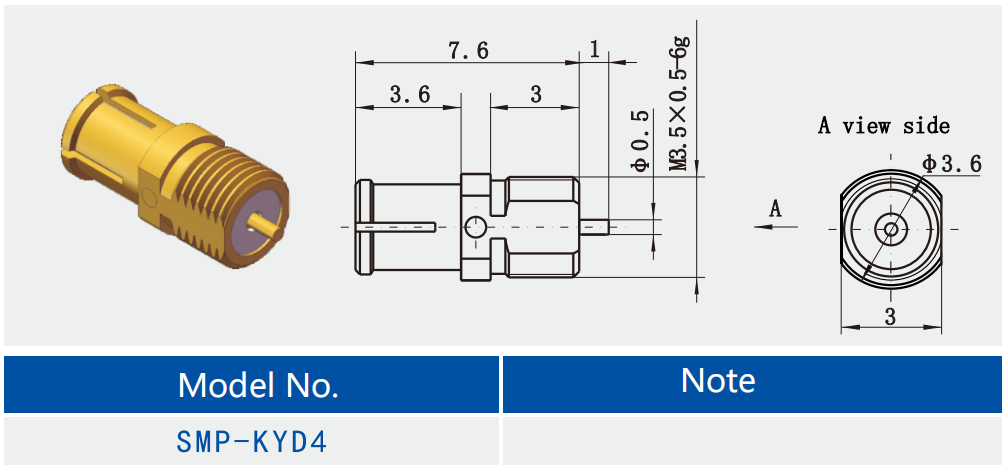

Detailed Drawing

SMP Female Bulkhead RF Connector With Microstrip For Enhanced Performance And Reliability

NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.


Features and Benefits

Gold plated
Sub-miniature
DC to 40GHz
Compact size
Push-on or snap coupling
Full detent, Limited detent and Smooth bore
PCB & cable mount connector
Male and Female, Straight and Right Angle choice
Cable mount versions for both flexible and semi-rigid cable Materials
Normal type and hermetic, Flange mount & Thread-In Mount choice


Applications

- Antennas
- Broadband
- Aerospace

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect
