Passivated Stainless 1.85 to CSMP Male Adapter
Passivated Stainless 1.85 to CSMP Male Adapter
Passivated Stainless 1.85 to CSMP Male Adapter
Passivated Stainless 1.85 to CSMP Male Adapter
Specifications
Brand Name :
ELT (Elite)
Model Number :
1.85-CSMP-JJ1G-S
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
1.85 male to CSMP male RF Coaxial Adapter
Plating :
Passivated
Impedance :
50Ω
Dielectric :
PTFE
Type :
RF Adaptor
Application :
Network
Material :
Stainless steel
Gender :
male to male
Body style :
Straight
Description

Between series Adapter Stainless Steel 1.85 male to CSMP male Adapter

SMP electrical connectors are snap-on RF coaxial connectors with subminiature size, light weight, good anti-vibration capability and wide frequency range up to 30GHz (Our SMP coaxial RF connectors can reach up to 40GHz or more), which makes them ideal RF connectors for intensive interconnection conditions where small size, high-performance and reliable connectors are needed.

SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.

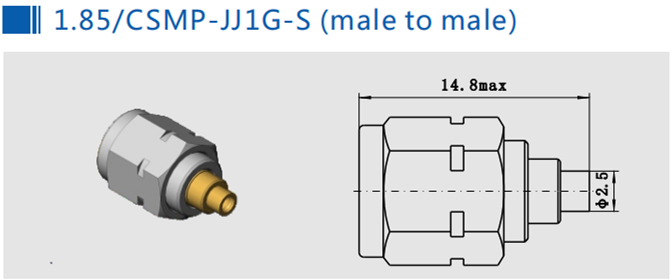

Outline Drawing and Picture(mm)

Passivated Stainless 1.85 to CSMP Male Adapter

Model No. Note
1.85/CSMP-JJ1G-S CSMP end is smooth bore interface depth is1.22mm

Related Products

1.

Passivated Stainless 1.85 to CSMP Male Adapter

Mode No. Note

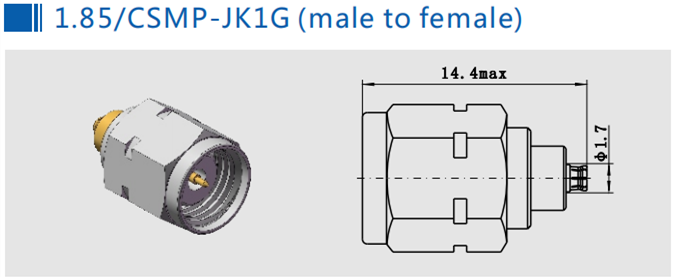

1.85/CSMP-JK1G stainless steel

2.

Passivated Stainless 1.85 to CSMP Male Adapter

Model No. Note

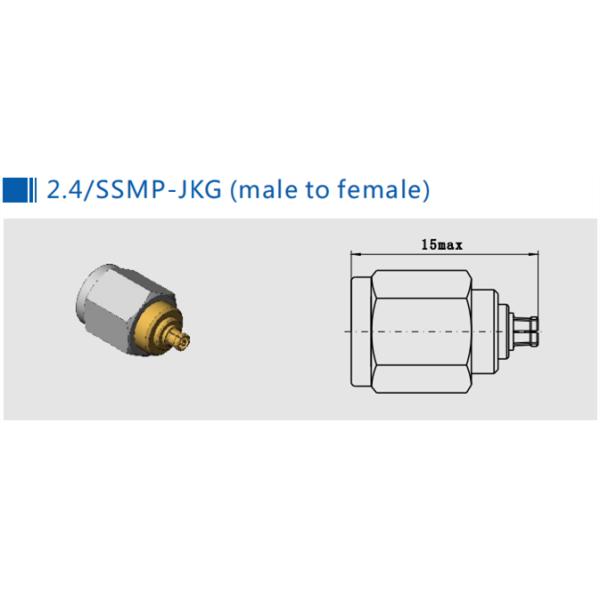

2.4/SSMP-JKG stainless steel

3.

Passivated Stainless 1.85 to CSMP Male Adapter

Model No. Description

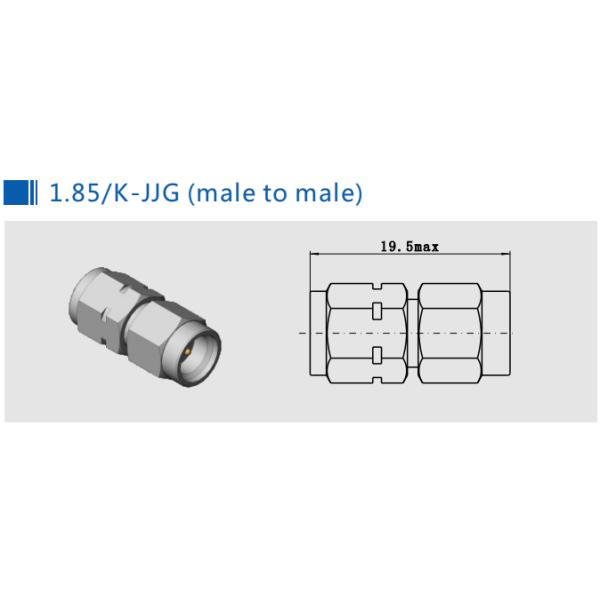

1.85/K-JJG Stainless steel

4.

Passivated Stainless 1.85 to CSMP Male Adapter

Model No. Description
SMA/MCX-KWJ SMA female to MCX male right angle adapter

5.

Passivated Stainless 1.85 to CSMP Male Adapter

Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
