50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector
50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector
50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector
50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :

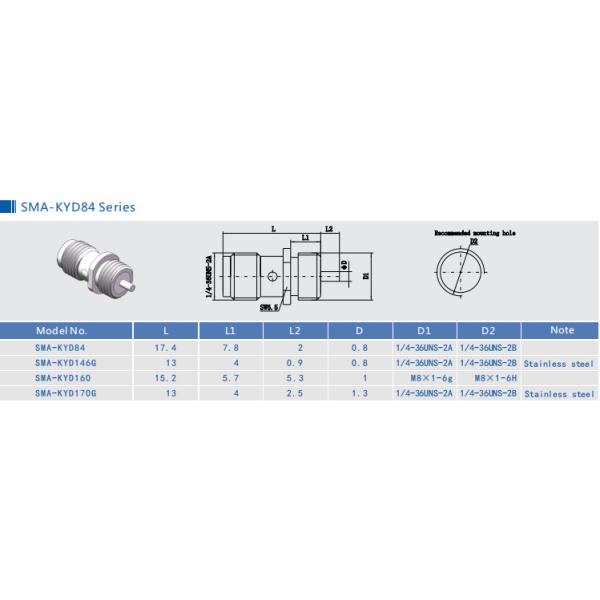

SMA-KYD84
Certification :
ROHS, ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,00 Pieces Per Month
Delivery Time :
Within 3-4 weeks
Packaging Details :
Standard Export Carton
Item :
SMA RF Conector
Plating :
Nickle Plated
Gender :
Female
Impedance :
50Ω
Frequency :
DC~18GHz
Lifetime :
500 Cycles
Body :
Brass
Application :
audio/vedio/microwave
Description

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

  • SMA RF connectors are available in quick connect, push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
  • SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
  • SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
  • SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

Key Features:

  • Wide variety of orientations and PCB terminations
  • Frequency range up to 18GHz Sub-miniature coaxial connectors
  • Using a threaded interface
  • Available in passivation or gold plating
  • Brass and stainless steel material options
  • Available in straight or right angle versions
  • With bulkhead, 2 holes panel, 4 holes panel or mountless options.
  • Broad range with male, female and adapters variants.
  • RoHS compliant

Specifiacation of SMA RF Connectors:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

Application:

  1. Microwave Systems Telecommunications
  2. 5G Solutions
  3. Measurement Systems
  4. Mobile Telephone WiFi Antennas Systems

More Detail of SMA RF Coax Connectors:

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

Product Cataloge:

RF Adapter
SMA RF Connector
SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

Related Product

1.SMA Female Bulkhead Mount RF Connectors for PCB

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

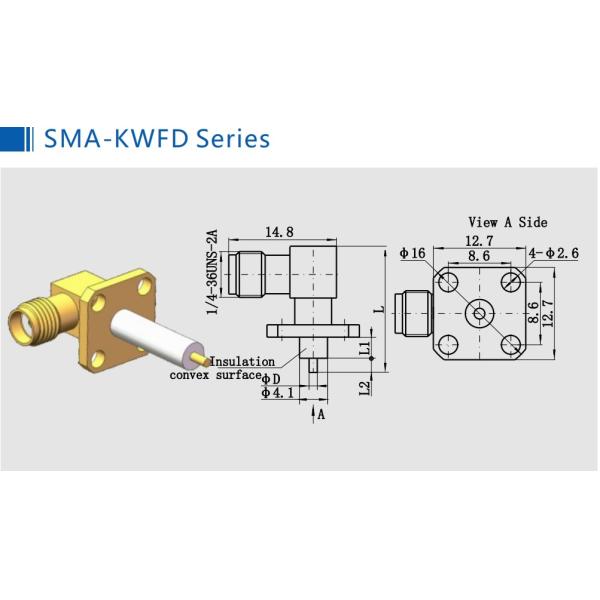

2.SMA 4-Holes Flange Mount Right Angle RF Coax Connectors

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

Model No, L L1 L2 D Note
SMA-KWFD 29 15 2.9 1.3
SMA-KWFD8 15.1 3 1 1.3
SMA-KWFD103 22.4 5.4 5.7 1.3
SMA-KFD113 34 20 2.9 1.3
SMA-KWFD118 20.1 4.8 4.2 1.3
SMA-KWFD120 16.1 4 1 1.3
SMA-KWFD122 17.4 2.3 4 1.3

3.PCB Solder Mount 50Ω Gold Plated 18GHz SMA Right Angle Connectors

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

Model No. L L1 Note
SMA-KWHD 13.5 3.9
SMA-KWHD9 11.5 1.9
SMA-KWHD11 15.6 6

4.SMA Female PCB Panel Solder Mount RF Connectors

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

Model No. L D D1 Note
SMA-KHD9 2 1.3 1.4
SMA-KHD9A 1.8 0.8 0.9

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
