Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Specifications
Brand Name :
ELT
Model Number :
SMA-JFD141
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100,000 Pieces Per Month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Item :
SMA RF Conector
Plating :
Gold Plated/ Passivation
Frequency :
DC~18GHz
Gender :
Male
Lifetime :
500 Cycles
Application :
audio/vedio/microwave
Working voltage :
335V r.m.s at sea level
Type :
SMA
Description

50Ohm Straight Gold Plated SMA Male RF Coax Connector

  • SMA series is a kinds of mini, high-frequency RF coaxial connector.
  • it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics.
  • SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.
  • The high performance connector developed by our company can reach to 20GHz.

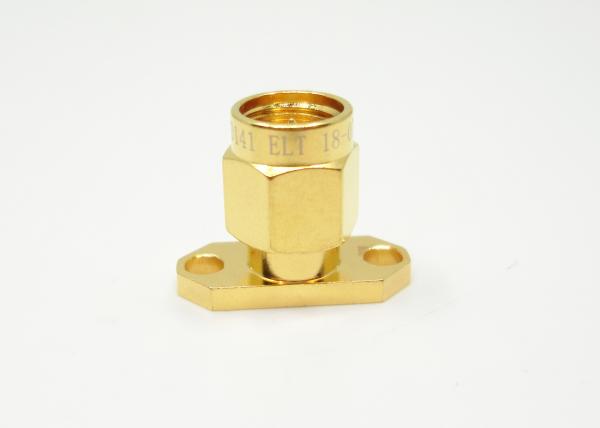

Straight 2 holes Flange Mount Gold Plated SMA Connector Male

Specification of SMA RF Connectors:

Electrical Characteristics
Impedance 50Ω
Frequency Range Connect with solf cable DC~12.4GHz
Connect with semi-rigid cable DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3

Features of SMA RF Connectors:

  • Sub-miniature coaxial connectors
  • Screw-on coupling
  • Light weight, compact and vibration proof design
  • Available in nickel or gold plating , in a wide variety of orientations and PCB terminations
  • Broad range with male, female and adapters variants.
  • Frequency range up to 18 GHz
  • Intermateable with SMA2.9.
  • Excellent return loss

Interface Dimentions:
Straight 2 holes Flange Mount Gold Plated SMA Connector Male
Material & Mechanical Characteristics:

Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Tightening torque of connection 0.79－1.13N .m
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE

Advantages of SMA RF Connecctors:

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required

2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc

3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz

4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions,as well as bulkhead, or 4 hole panel configurations

Detailed Images of SMA RF Coax Connectors:

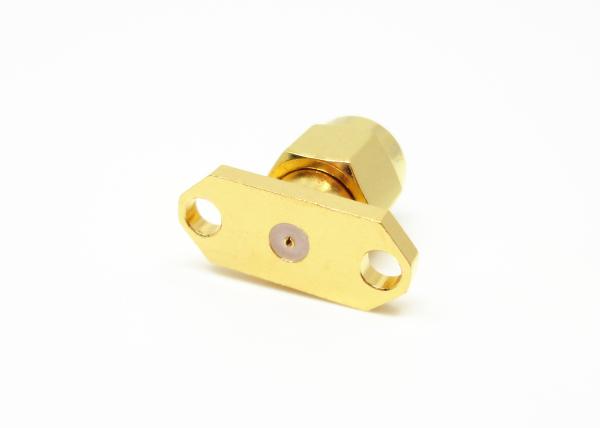

Straight 2 holes Flange Mount Gold Plated SMA Connector Male

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
